1 1/2″ Bolted Metal
Manufacturer: Versamatic

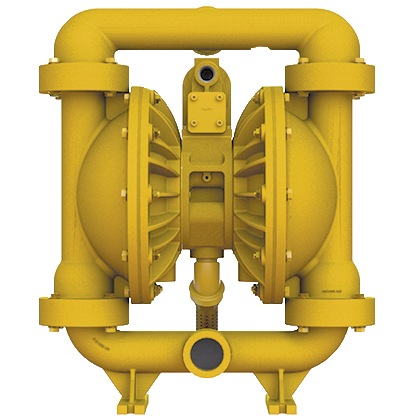

Versamatic’s 1 ½" (38mm) air operated double diaphragm (AODD) pump uses a patented air valve system to deliver consistent on/off reliability while maintaining superior air efficiency. Available with several extended life diaphragm styles to choose from, this portable AODD pump delivers excellent flow rates.
The Versamatic 1 ½" pump is the performance leader in flow rate at 123 gpm (465 lpm), displacement per cycle and dry suction lift. Additionally, this pump:
• Makes maintenance easy with a removable air valve sleeve and modular pilot spool design
• Offers leak free bolted design for confidently and safely transferring acids and caustics in your application
• This pump is ATEX compliant
The Versamatic 1 ½" pump is the performance leader in flow rate at 123 gpm (465 lpm), displacement per cycle and dry suction lift. Additionally, this pump:
• Makes maintenance easy with a removable air valve sleeve and modular pilot spool design
• Offers leak free bolted design for confidently and safely transferring acids and caustics in your application
• This pump is ATEX compliant
Flow Rate0-123 gpm (0-466 lpm)
Port Size Inlet1 ½" NPT (BSP)
Port Size Discharge1 ½" NPT (BSP)
Air Exhaust¾" NPT
Air Inlet½" NPT
Suction Lift Dry19' (5.8 m)
Suction Lift Wet31' (9.4 m)
Max Particle Size¼" (0.635 cm)
Shipping Weight Aluminum55 lbs (25kg)
Shipping Weight Cast Iron95 lbs (43 kg)
Shipping Weight Stainless Steel92 lbs (42 kg)
