1 1/2″ Bolted Plastic
Manufacturer: Versamatic

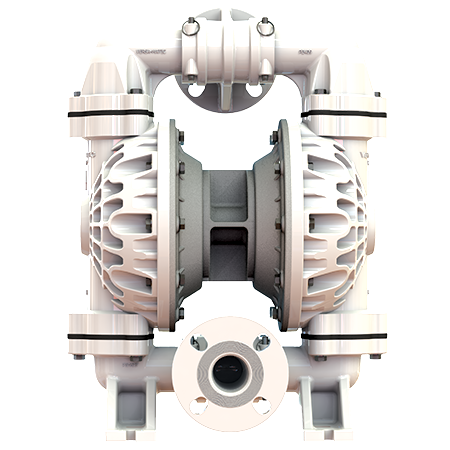

Versamatic’s 1 ½" (38mm) bolted plastic air operated double diaphragm (AODD) pump offers installation flexibility with adjustable porting options (horizontal and vertical). Our patented air distribution system ensures pump longevity and reliability in your application.
The 1 ½" AODD pump:
• Is designed to be ready on demand
• Delivers consistent on/off reliability
• Provides excellent chemical resistance
• Features Fusion™ diaphragm compatibility for high chemical resistance
The 1 ½" AODD pump:
• Is designed to be ready on demand
• Delivers consistent on/off reliability
• Provides excellent chemical resistance
• Features Fusion™ diaphragm compatibility for high chemical resistance
Flow Rate0-75 gpm (284 lpm)
Port Size Suction1 ½" ANSI
Port Size Discharge1 ½" ANSI
Air Inlet½" NPT
Air Exhaust¾" NPT
Suction Lift Dry15' (4.57 m)
Suction Lift Wet25' (7.6 m)
Max Solid Size (Diameter)3⁄16" (4.76 mm)
Max Noise Level89 dB(A)
Shipping Weight Polypropylene55 lbs (25 kg)
Shipping Weight Kynar55 lbs (25 kg)
