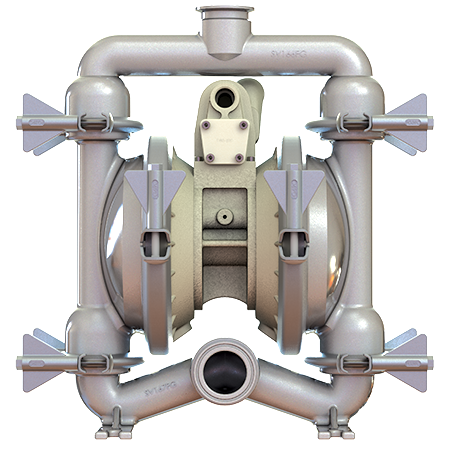

1 1/2″ Clamped Metal (FDA)
Manufacturer: Versamatic
Versamatic manufactures a complete line of FDA compliant air operated double diaphragm (AODD) pumps. Built for specialty applications requiring FDA compliance, our 1 ½" (38mm) clamped metal food processing pump meets your rapid food grade transfer needs quickly and reliably. This portable pump is ideal for batching and on demand applications.
FDA Diaphragm Pump Features:
• Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ in (Ra 3.81 µ m) internally and externally
• Extended life diaphragm: Available with an integrated plate PTFE diaphragm
• Hygienic wing nuts: For easy assembly
• Chemical resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
• Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
• Tri clamped connections: For quick disassembly, easy sanitization and reassembly
• Clamped constructions: Quick teardown and reassembly
• Dimensionally interchangeable pumps, parts and air sections: For seamless upgrades
The clamped construction is the lighter weight option of the AODD pump designs, delivering high flow rates and fast maintenance. Additionally, this food grade transfer pump is ATEX compliant and widely available in models complying with (EC) No 1935/2004 for Food Contact Materials.
FDA Diaphragm Pump Features:
• Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ in (Ra 3.81 µ m) internally and externally
• Extended life diaphragm: Available with an integrated plate PTFE diaphragm
• Hygienic wing nuts: For easy assembly
• Chemical resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
• Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
• Tri clamped connections: For quick disassembly, easy sanitization and reassembly
• Clamped constructions: Quick teardown and reassembly
• Dimensionally interchangeable pumps, parts and air sections: For seamless upgrades
The clamped construction is the lighter weight option of the AODD pump designs, delivering high flow rates and fast maintenance. Additionally, this food grade transfer pump is ATEX compliant and widely available in models complying with (EC) No 1935/2004 for Food Contact Materials.
Flow Rate0-70-gpm (0-265 lpm)
Port Size Inlet2" Tri Clamp
Port Size Discharge2" Tri Clamp
Air Exhaust¾" NPT
Air Inlet½" NPT
Suction Lift Dry15' (4.6m)
Suction Lift Wet25' (7.6m)
Max Particle Size0.1875" (0.4763cm)
Shipping Weight Stainless Steel57 lbs (26 kg)
