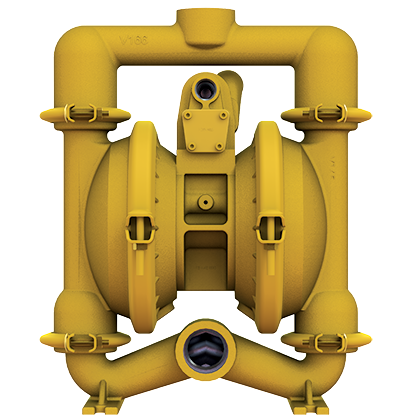

1 1/2″ Clamped Metal
Manufacturer: Versamatic
Versamatic’s 1 ½" (38mm) air operated double diaphragm (AODD) pump features a classic clamped design that delivers reliability and portability. This pump is dimensionally interchangeable with Wilden 4 Clamped Series. Self priming and available in a variety of materials, this AODD pump:
• Features rigid and durable construction
• Comes with diverse material offerings for your applications
• Is submersible and portable
• Is non freezing and non stalling
• Has consistent on/off reliability
Versamatic AODD pumps can effectively handle a broad array of fluid types—from water to products that are viscous or abrasive.
This pump is ATEX compliant.
• Features rigid and durable construction
• Comes with diverse material offerings for your applications
• Is submersible and portable
• Is non freezing and non stalling
• Has consistent on/off reliability
Versamatic AODD pumps can effectively handle a broad array of fluid types—from water to products that are viscous or abrasive.
This pump is ATEX compliant.
Flow Rate0-71 gpm (0-268 lpm)
Port Size Suction1 ½" NPT
Port Size Discharge1 ¼" NPT
Air Inlet½" NPT
Air Exhaust¾" NPT
Suction Lift Dry19'(5.8m)
Suction Lift Wet31'(9.4m)
Max Solid Size (Diameter)3⁄16" (4.76 mm)
Max Noise Level101 dB(A)
Shipping Weight Aluminum55 lbs (25 kg)
Shipping Weight Cast Iron95 lbs (43 kg)
Shipping Weight Stainless Steel92 lbs (42 kg)
