1/2″ Bolted Metal (FDA)
Manufacturer: Versamatic

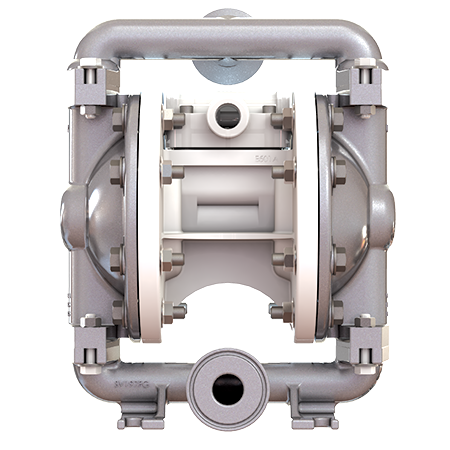

Versamatic’s ½" (13mm) specialty food processing pump utilizes a patented air valve system to deliver consistent on/off reliability while maintaining superior efficiency. Built with FDA compliant materials so that it can be specified in applications requiring FDA compliance, this air operated double diaphragm (AODD) pump meets your food grade transfer needs quickly and reliably to ensure continuous operation.
Not sure if what you’re pumping is compatible with this AODD pump? Check out our interactive chemical compatibility guide.
FDA Diaphragm Pump Features
• Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ in (Ra 3.81 µ m) internally and externally
• Extended life diaphragm: Available with an integrated plate PTFE diaphragm
• Chemical resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
• Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
• Tri clamped connections: For quick disassembly, easy sanitization and reassembly
Not sure if what you’re pumping is compatible with this AODD pump? Check out our interactive chemical compatibility guide.
FDA Diaphragm Pump Features
• Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ in (Ra 3.81 µ m) internally and externally
• Extended life diaphragm: Available with an integrated plate PTFE diaphragm
• Chemical resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
• Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
• Tri clamped connections: For quick disassembly, easy sanitization and reassembly
Flow Rate0-12 gpm (45.4 lpm)
Port Size Inlet1 ½" Tri Clamp
Port Size Discharge1 ½" Tri Clamp
Air Exhaust⅜" NPT
Air Inlet⅜" NPT
Suction Lift Dry13' (3.9 m)
Suction Lift Wet22' (6.7 m)
Max Particle Size1⁄16 " (1.6 mm)
Shipping Weight Polypropylene84 dB(A)
Shipping Weight Kynar17 lbs (7.7 kg)
