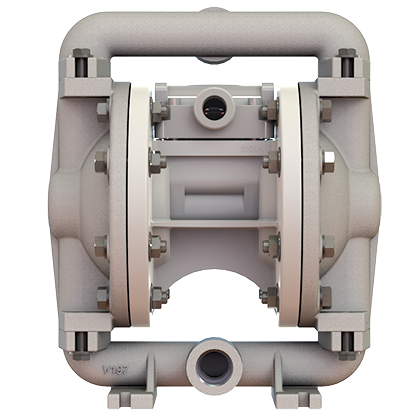

1/2″ Bolted Metal
Manufacturer: Versamatic
The leak free bolted construction of Versamatic’s ½" (13mm) bolted metal air operated double diaphragm pump (AODD) pump reduces downtime and ensures continuous operation, as well as provides a greater positive seal for safe, reliable transfer of chemicals in OEM systems and applications. A patented non stalling, lubrication free air valve design provides the reliability you need and lets you safely and confidently transfer chemicals.
With a diverse material offering for your applications, the ½" bolted metal AODD pump, along with the ½" bolted plastic pump, features:
• A max flow of 12 gpm (45 lpm) compared to our other products
• A corrosion resistant air section
• On/off reliability
• Durable and long lasting construction
• Extended life diaphragms
• Simple, low cost maintenance
This pump is available in an ATEX compliant construction.
With a diverse material offering for your applications, the ½" bolted metal AODD pump, along with the ½" bolted plastic pump, features:
• A max flow of 12 gpm (45 lpm) compared to our other products
• A corrosion resistant air section
• On/off reliability
• Durable and long lasting construction
• Extended life diaphragms
• Simple, low cost maintenance
This pump is available in an ATEX compliant construction.
Flow Rate0-12 gpm (45.4 lpm)
Port Size Suction½" NPT
Port Size Discharge½" NPT
Air Inlet⅜" NPT
Air Exhaust⅜" NPT
Suction Lift Dry13' (3.9 m)
Suction Lift Wet22' (6.7 m)
Max Solid Size (Diameter)1⁄16 " (1.6 mm)
Max Noise Level84 dB(A)
Shipping Weight Aluminum11 lbs (3.9 kg)
17 lbs (7.7 kg)
17 lbs (7.7 kg)
