1/4″ Bolted Plastic
Manufacturer: Versamatic

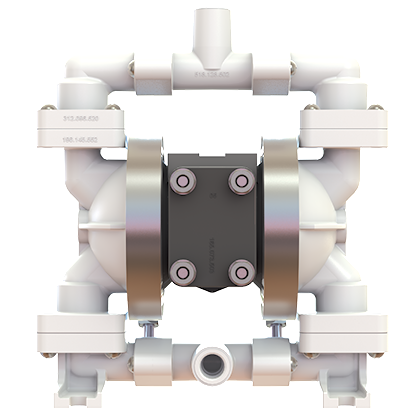

Get reliable performance with the non stalling, lube free air valve system in Versamatic’s ¼" (6mm) plastic air operated double diaphragm (AODD) pump.
Engineered with original equipment manufacturers (OEMs) in mind, this AODD pump provides tremendous system flexibility as well as:
• Dual threaded manifolds that are threaded both internally and externally
• Optimal horizontal or vertical manifold configurations
• An integrated muffler, making it one of the quietest and most compact pumps in its class
Available in groundable acetal for pumping volatile mediums, ¼" AODD pumps come with a variety of accessories for your applications, including diaphragms in multiple materials. This pump is available in an ATEX compliant construction.
Engineered with original equipment manufacturers (OEMs) in mind, this AODD pump provides tremendous system flexibility as well as:
• Dual threaded manifolds that are threaded both internally and externally
• Optimal horizontal or vertical manifold configurations
• An integrated muffler, making it one of the quietest and most compact pumps in its class
Available in groundable acetal for pumping volatile mediums, ¼" AODD pumps come with a variety of accessories for your applications, including diaphragms in multiple materials. This pump is available in an ATEX compliant construction.
Flow Rate0-4 gpm (15 lpm)
Port Size Suction¼" NPT(BSP)
Port Size Discharge¼" NPT(BSP)
Air Inlet¼" NPT
Air Exhaust¼" NPT
Suction Lift Dry8' (2.44 m)
Max Solid Size (Diameter)1⁄32 " (1 mm)
Max Noise Level78 dB(A)
Shipping Weight Polypropylene3 lbs (1.40-kg)
Shipping Weight Kynar4.5 lbs (2.04 kg)
