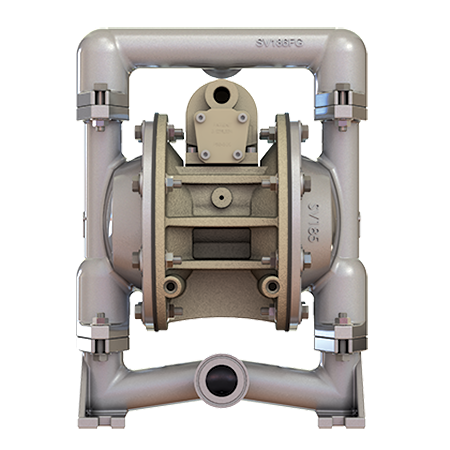

1″ Bolted Metal (FDA)

Versamatic’s 1" (25mm) specialty FDA diaphragm pump utilizes a patented air valve system to deliver consistent on/off reliability while maintaining superior efficiency. The 1" food grade transfer pump is built with FDA compliant materials so that it can be specified in applications requiring FDA compliance.

This air operated double diaphragm (AODD) pump is available in stainless steel.

Applications:
• Filling lines
• Blending/mixing
• Ingredient injection
• Product transfer/tank over

This food processing pump is also ATEX compliant.

FDA Diaphragm Pump Features:
• Smooth, clean (and shiny) casting finish: Electropolished to a surface finish of 150 µ in (Ra 3.81 µ m) internally and externally
• Extended life diaphragm: Available with an integrated plate PTFE diaphragm
• Chemical resistant air section materials: Protect against chemical attacks during operation and/or the sanitization process
• Exclusive air valve system: Delivers excellent on/off/on reliability, longevity and efficiency
• Tri clamped connections: For quick disassembly, easy sanitization and reassembly

Flow Rate0-49 gpm (185.5 lpm)

Port Size Suction1 ½" TRI CLAMP

Port Size Discharge1 ½" TRI CLAMP

Air Inlet⅜" NPT

Air Exhaust½" NPT

Suction Lift Dry16' (3.1 m)

Suction Lift Wet31' (9.4 m)

Max Solid Size (Diameter)⅛" (3.1 cm)

Max Noise Level93 dB(A)

Shipping Weight Stainless Steel36 lbs (16.3 kg)
