1″ Bolted Metal
Manufacturer: Versamatic

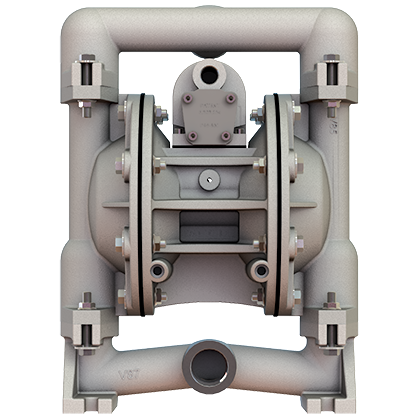

Versamatic’s 1" (25mm) bolted metal air operated double diaphragm (AODD) pump uses a patented air valve system to provide non stalling, lube free performance with a flow rate of 0 49 gpm (0 185 lpm). The 1" bolted metal AODD pumps offer several advantages that make them perfect for a variety of applications.
Just one of the many air operated pumps Versamatic offers, this best selling chemical resistant diaphragm pump features a superior positive seal for safe, reliable transfer of fluids.
Additional Features:
• Simple, low cost maintenance
• Durable, long lasting construction
• Extended life diaphragms
• Available in a variety of materials
• Robust, leak free construction
• Patented air distribution that delivers on/off reliability
This pump is ATEX compliant.
Just one of the many air operated pumps Versamatic offers, this best selling chemical resistant diaphragm pump features a superior positive seal for safe, reliable transfer of fluids.
Additional Features:
• Simple, low cost maintenance
• Durable, long lasting construction
• Extended life diaphragms
• Available in a variety of materials
• Robust, leak free construction
• Patented air distribution that delivers on/off reliability
This pump is ATEX compliant.
Flow Rate0-49 gpm (181.7 lpm)
Port Size Suction1" NPT
Port Size Discharge1" NPT
Air Inlet⅜" NPT
Air Exhaust½" NPT
Suction Lift Dry15'(4.6m)
Suction Lift Wet31'(9.4m)
Max Solid Size (Diameter)⅛" (3.2 mm)
Max Noise Level91 dB(A)
Shipping Weight Aluminum27 lbs (5 kg)
Shipping Weight Stainless Steel40-lbs (7.7 kg)
Shipping Weight Alloy C40-lbs (7.7 kg)
