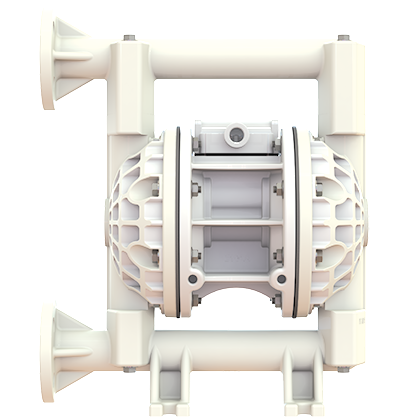

1″ Bolted Plastic
Manufacturer: Versamatic
The patented non stalling, lubrication free air valve system of Versamatic’s 1" (25mm) bolted plastic air operated double diaphragm (AODD) pump provides excellent chemical resistance for pump longevity and reliability. The 1” is available in multiple porting configurations for ease of installation and application flexibility.
The rugged, leak free construction of the 1" bolted plastic diaphragm pump has a flow rate of up to 43 gpm (163 lpm). Additionally, this AODD pump features:
• High chemical resistance
• Simple, low cost maintenance
• Long term reliability
• Extended life diaphragms
• Multiple porting options
The 1" bolted plastic AODD pumps with plastic center sections consist of polypropylene and PVDF. Featuring moderate tensile and flex strength, polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance. High tensile strength and impact resistance make PVDF better suited for UV applications.
The rugged, leak free construction of the 1" bolted plastic diaphragm pump has a flow rate of up to 43 gpm (163 lpm). Additionally, this AODD pump features:
• High chemical resistance
• Simple, low cost maintenance
• Long term reliability
• Extended life diaphragms
• Multiple porting options
The 1" bolted plastic AODD pumps with plastic center sections consist of polypropylene and PVDF. Featuring moderate tensile and flex strength, polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance. High tensile strength and impact resistance make PVDF better suited for UV applications.
Flow Rate0-43 gpm (162.8 lpm)
Port Size Suction1" 150# ANSI/DIN 325 Flange
Port Size Discharge1" 150# ANSI/DIN 325 Flange
Air Inlet⅜" NPT
Air Exhaust½" NPT
Suction Lift Dry11'(3.4m)
Suction Lift Wet31'(9.4m)
Max Solid Size (Diameter)⅛" (3.1 mm)
Max Noise Level94 dB(A)
Shipping Weight Polypropylene17 lbs (7.7 kg)
Shipping Weight PVDF22 lbs (10-kg)
