1DW
Manufacturer: Xylem

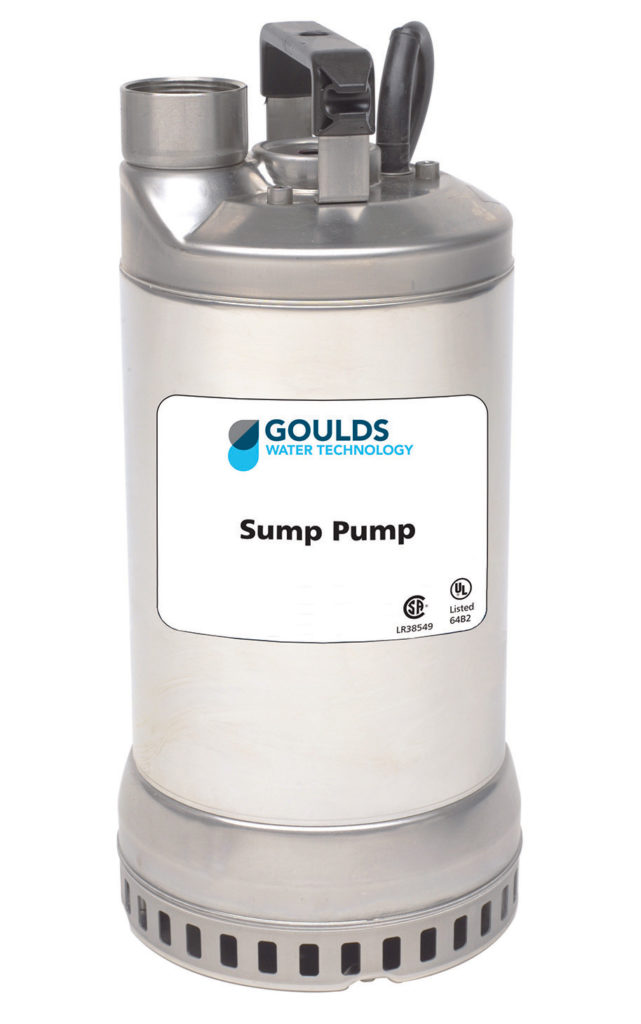

1DW (1 1/2") Submersible Dewatering Pumps.
Applications:
• Draining Ditches and Pits
• Industrial Water Drainage/Transfer
• Handling Dirty Waters
• Water Transfer
• Excavating Drainage in Building Trade
• Impeller: AISI 304 SS open impeller
• Diffuser Plate: AISI 304 SS with Polyurethane coating for maximum resistance to abrasion
• Casing: AISI 304 SS
• Mechanical Seal: Silicon carbide sealing faces, all metal components of AISI type 300 stainless steel running in protected oil chamber
• Elastomers: BUNA N
• Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening
• Motor: Air filled class F insulated design for continuous use
• Designed for Continuous Operation: Pump ratings are within the motor's working limits and can be operated continuously without damage
• Bearings: Upper and lower heavy duty ball bearing construction
• Diffuser Plate: AISI 304 SS with Polyurethane coating for maximum resistance to abrasion
• Casing: AISI 304 SS
• Mechanical Seal: Silicon carbide sealing faces, all metal components of AISI type 300 stainless steel running in protected oil chamber
• Elastomers: BUNA N
• Shaft: AISI type 304 stainless steel high strength pump shaft with keyed and locking cap screw impeller fastening
• Motor: Air filled class F insulated design for continuous use
• Designed for Continuous Operation: Pump ratings are within the motor's working limits and can be operated continuously without damage
• Bearings: Upper and lower heavy duty ball bearing construction
