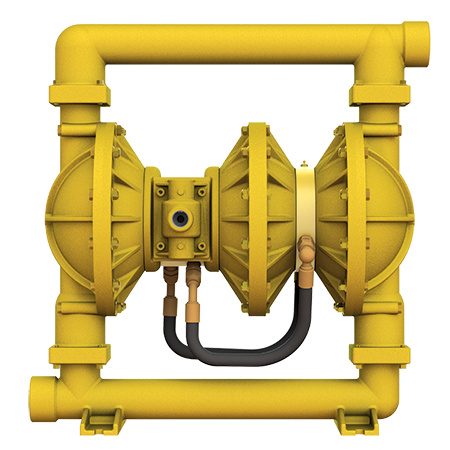

2″ Bolted Metal (High Pressure)
Manufacturer: Versamatic
Versamatic’s 2" (51mm) bolted metal high pressure air operated double diaphragm (AODD) pump provides reliable performance in specialty applications where pressure is a concern, such as filter press feeds, mine dewatering and slurry transfer. When your application requires additional discharge pressure, you’ll require more power than a standard AODD pump.
The 2" bolted metal high pressure diaphragm pump delivers up to 232 psi (16 bar) with a standard flow rate of up to 90 gpm (341 lpm). Available in stainless steel or aluminum construction, this AODD pump uses a patented air valve system for non stalling, non icing and lube free operation.
The 2" bolted metal high pressure diaphragm pump delivers up to 232 psi (16 bar) with a standard flow rate of up to 90 gpm (341 lpm). Available in stainless steel or aluminum construction, this AODD pump uses a patented air valve system for non stalling, non icing and lube free operation.
Flow Rate0-90-gpm (341 lpm)
Port Size Suction2" NPTF
Port Size Discharge2" NPTF
Air Inlet¾" NPT
Air Exhaust¾" NPT
Suction Lift Dry20' (6.09 m)
Suction Lift Wet25' (7.62 m)
Max Solid Size (Diameter)¼" (6 mm)
Shipping Weight Aluminum147 lbs (67 kg)
Shipping Weight Stainless Steel165 lbs (75 kg)
