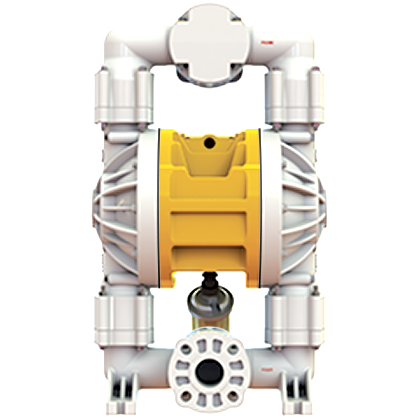

2″ Bolted Plastic

Manufacturer: Versamatic

The rugged, leak free construction of Versamatic’s 2" (51mm) bolted plastic air operated double diaphragm (AODD) pump has a maximum flow rate of 192 gpm (727 lpm) for optimal pumping performance. Some of the features of this AODD pump include:
• Excellent flow rate
• Multiple porting configurations for installation flexibility
• Superior chemical resistance
• Lightweight construction
• Self priming
• On/off reliability
• Non freezing, non stalling

2" bolted plastic AODD pumps consist of polypropylene and polyvinylidene fluoride (PVDF). Known for its moderate tensile and flex strength, polypropylene is a thermoplastic polymer that resists strong acids and alkali. PVDF is a durable fluoroplastic with excellent chemical resistance and high tensile strength and impact resistance. PVDF is best suited for UV applications.

Versamatic’s 2" pump is the ideal solution for applications where aggressive chemicals are being moved. These pumps feature wear reducing components and chemical resistant materials that further improve your total cost of ownership.

As an AODD pump manufacturer, Versamatic is committed to making pumping easy from product selection to installation and beyond.

Flow Rate0-192 gpm (727 lpm)

Port Size Suction2" ANSI/DIN #50-Flange

Port Size Discharge2" ANSI/DIN #50-Flange

Air Inlet½" NPTF

Air Exhaust¾" NPTF

Suction Lift Dry (Rubber)20' (6.10-m)

Suction Lift Dry (PTFE)10' (3.05 m)

Max Solid Size (Diameter)¼" (6 mm)

Shipping Weight Polypropylene67 lbs (30-kg)

Shipping Weight PVDF93 lbs (42 kg)
