3″ Bolted Plastic

Manufacturer: Versamatic

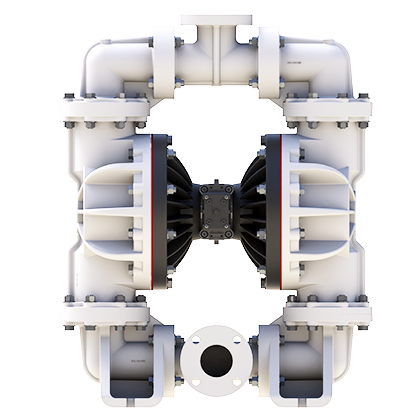

Versamatic’s 3" (76mm) bolted plastic air operated double diaphragm (AODD) pump quickly delivers the on/off reliability you need and provides rapid transfer of chemicals safely and confidently.

Suitable for bulk chemical transfer and waste treatment (filter press feed) applications, this AODD pump has a max flow rate of 280 gpm (1,060 lpm) and offers several advantages, including:
• Patented, reliable air valve system
• High chemical resistance
• Diverse material offering
• Class leading air efficiency
• Robust, solid construction
• Non freezing/non stalling

Versamatic AODD pumps deliver consistency, reliability and trouble free operation to keep your processes running.

Flow Rate0-280-gpm (0-1,060-lpm)

Port Size Suction3" ANSI 150#Class (DIN 80)

Port Size Discharge3" ANSI 150#Class (DIN 80)

Air Inlet1" NPT

Air Exhaust¾" NPT

Suction Lift Dry20' (6.1m)

Suction Lift Wet25' (7.6m)

Max Particle Size0.71" (1.8034cm)

Max Noise Level208 lbs (94 kg)

Shipping Weight Stainless271 lbs (123 kg)
