3″ Clamped Metal
Manufacturer: Versamatic

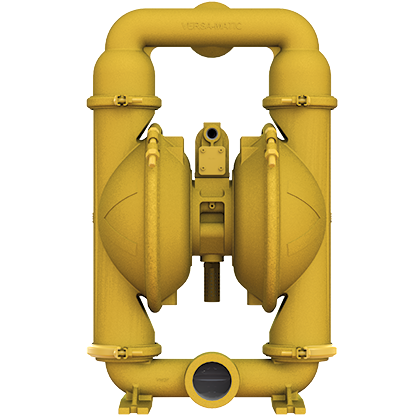

Versamatic’s 3" (76mm) ATEX diaphragm pump features a simple clamped assembly designed for proven performance, delivering high flow rates and excellent solids and slurries handling. This air operated double diaphragm (AODD) pump can effectively handle a broad array of fluid types in a wide range of applications.
Additionally, the 3" ATEX certified AODD pump is suited for use in potentially hazardous environments, including those containing chemicals, oil and gas. Versamatic delivers the safety of ATEX compliance in the pump styles and materials the world demands.
ATEX Diaphragm Pump Safety Benefits:
• Fully groundable
• No isolated metallic hardware components
• Electrically conductive materials of construction
• Electrostatic discharges are dissipated in a continual current path throughout the pump to a natural ground
Additionally, the 3" ATEX certified AODD pump is suited for use in potentially hazardous environments, including those containing chemicals, oil and gas. Versamatic delivers the safety of ATEX compliance in the pump styles and materials the world demands.
ATEX Diaphragm Pump Safety Benefits:
• Fully groundable
• No isolated metallic hardware components
• Electrically conductive materials of construction
• Electrostatic discharges are dissipated in a continual current path throughout the pump to a natural ground
Flow Rate0-234 gpm (886 lpm)
Port Size Suction3" NPT (BSP)
Port Size Discharge3" NPT (BSP)
Air Inlet½" NPT
Air Exhaust1" NPT
Suction Lift Dry20' (6.1 m)
Suction Lift Wet32' (9.8 m)
Max Solid Size (Diameter)⅜" (9.5 mm)
Max Noise Level96 dB(A)
Shipping Weight Aluminum108 lbs (49.0-kg)
Shipping Weight Cast Iron205 lbs (93 kg)
Shipping Weight Stainless183 lbs (83 kg)
Shipping Weight **Stainless Center Add50-lbs (2.7 kg)
