3796
Manufacturer: ITT Goulds

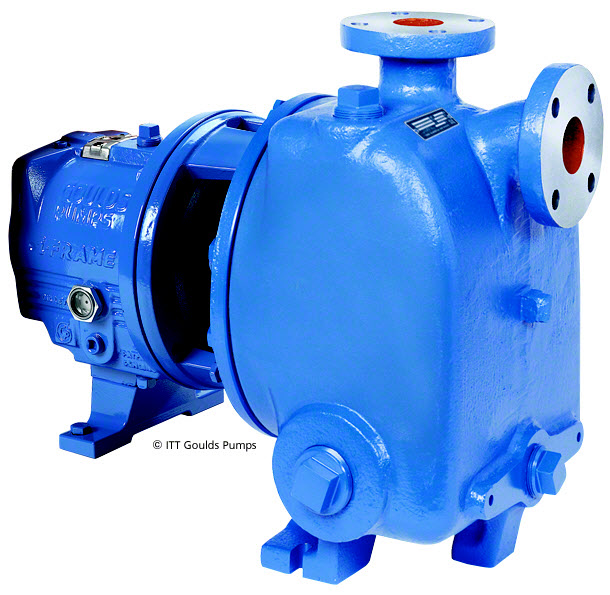

Goulds 3796 i FRAME Self Priming Process Pumps. Goulds Model 3796 i FRAME process pump line is specifically designed to provide superior performance for self priming services of the Chemical Process Industries.
• Capacities to 1250 GPM (284 m3/h)
• Heads to 430 feet (131 m)
• Temperatures to 500° F (260° C)
• Pressures to 375 PSIG (2586 kPa)
• Effective static lift to 20 feet (6 m)
• One piece casing with integral priming and air separation (no external priming chamber or air separator required)
• No suction check valve required
• Rapid priming time
• Positive retention of pumpage under siphon conditions
• Self purge of vapors
• i FRAME Power Ends
• Back pull out design (one craft maintenance)
• Parts interchangeable with Goulds Model 3196
• External impeller adjustment
• Easy retrofit
• ANSI B15.1 coupling guard
• Ductile iron frame adapter
• Fully serrated flanges
• Heads to 430 feet (131 m)
• Temperatures to 500° F (260° C)
• Pressures to 375 PSIG (2586 kPa)
• Effective static lift to 20 feet (6 m)
• One piece casing with integral priming and air separation (no external priming chamber or air separator required)
• No suction check valve required
• Rapid priming time
• Positive retention of pumpage under siphon conditions
• Self purge of vapors
• i FRAME Power Ends
• Back pull out design (one craft maintenance)
• Parts interchangeable with Goulds Model 3196
• External impeller adjustment
• Easy retrofit
• ANSI B15.1 coupling guard
• Ductile iron frame adapter
• Fully serrated flanges
