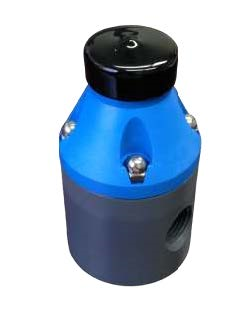

Back Pressure Relief Valve

Manufacturer: Pulsafeeder

The Pulsafeeder diaphragm Back Pressure Valves are designed to enhance the performance of chemical feed systems by applying a continuous back pressure to the chemical feed pump, while also acting as an anti-siphon valve. Robust construction ensures reliability in the rigorous service of municipal and industrial applications. Wetted materials include: PVC, PVDF, PTFE, 316SS. Available sizes: 1/2” – 1.5”.
Pulsafeeder diaphragm Back Pressure Valves apply positive discharge pressure to the chemical metering pump system to prevent siphoning and eliminate varying dosage rates caused by fluctuating downstream pressure. The diaphragm is held against the valve seat by an internal spring.
When the preset pressure is exceeded the diaphragm is forced up and the chemical flows through the valve to the injection point. The valves are pre-set at 50 psi, however they are field adjustable from 10 -150 psi, via the adjustment screw. The relief valve should be installed as close to the injection point as possible to prevent chemical line drainage and it is most important that all chemical system equipment such as pulsation dampeners and pressure gauges are between the pump and back pressure valve.

Highly Reliable
Adjustable Pressure Settings
Low Cost
Compact Size.
Robust, Machined Construction.
Wide Range of Materials
