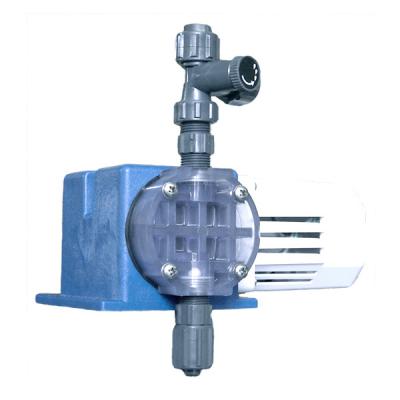

Chem Tech Series 100 150

Manufacturer: Pulsafeeder

The Chem Tech Series 100 is the standard by which all other dosing pumps are judged, Chem Tech Series 100/150 pumps with motorized diaphragm technology deliver dependable performance and extended longevity. The Series 100/150 provides quiet, consistent metering over long periods of time in a compact form. Series 100 Models The preferred metering pump for water conditioning professionals around the world. Perfect for applications where economical, consistent performance is required. Capable of a wide range of flows, from less than 3 gpd (0.47 lph) up to 30 gpd (4.72 lph) and pressures up to 100 psi (7 bar). Series 150 Models Built upon the same solid platform as the 100 Models, these units are capable of higher flow rates. With a range offering up to 100 gpd(15.76 lph), the Series 150 can meet the demands of larger applications. Maximum pressure is 60 psi (4.2 bar).

• Guided quad check valve system
• Bleed valve assembly standard
• Feed rate control
• Duplex Models Both series are configurable for dosing two chemicals at different rates

Pump Head MaterialsClear PVC, PVC, PP, 316 SS

Fitting Material AvailableGFPPL, PVC, PVDF

Bleed ValveSame as fitting and check valve selected (except 316SS)

Seat O Rings AvailablePTFE, CSPE, Viton

Balls AvailableCeramic, PTFE, 316 SS

DiaphragmsCSPE, Viton, PTFE faced CSPE backed

Tubing AvailableClear PVC, White PE, Black PE

Power Input115 VAC-60 HZ, 230 VAC-50 HZ, 230 VAC-60 HZ

Product Options• Duplex Head • Current Interrupter • Five Function Valve • Five Function Degas Valve • 15 Gallon ITS Tank

AccessoriesDampeners Gauges KOP Kits Pre Engineered Feed Systems Process Controllers Tanks
