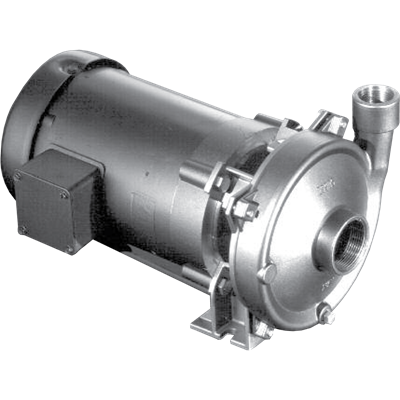

Chemflo 3 CC

Manufacturer: MP Pumps

2" x 1-1/2" Chemical Pump
CHEMFLO® 3 CC
Both electric and hydraulic motors can be close coupled to the CHEMFLO® 3 CC end suction centrifugal pump. Investment cast 316 stainless steel components help maintain the efficiency levels of the pump, reducing the harsh effects of certain chemical compounds. A CA 958 nickel aluminum bronze drive sleeve also protects against corrosion on this chemical pump.

The ChemFlo® 3 pumps utilize a semi-open impeller design to allow for passage of larger solid sizes than similar sized enclosed impellers. Several seal options are available in additon to the standard type 2100 carbon / ceramic / Viton mechanical seal.
ChemFlo® 3 pumps are offered in two configurations, pump (with motor) and PumPAK® (without motor) versions. Electric and hydraulic motors can be close coupled to ChemFlo® 3 pumps or pedestal mounted versions are also available for long coupling.
Further expanding the versatility of the ChemFlo® series is the CFB 3 pump, a ChemFlo® 3 in NiBrAl material. All wetted parts are produced in CA 958 nickel aluminum bronze including the drive sleeve to maximize corrosion protection in seawater applications.
If ordering a pumpak with a 145TC please note that the electric motor must have a base.

SUCTION AND DISCHARGE2" x 1-1/2" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTION316 stainless steel, CFB (nickel aluminum bronze)

FLOWUp to 125 GPM

HEAD FEETUp to 125'

IMPELLER5.25" semi-open, cast 316 SS

MOTORUp to 3 HP

DRIVE OPTIONSClose coupled 56C, Close coupled 145TC, Close coupled 184C, Pedestal, PumPAK® (without motor)

SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton

DRIVE SLEEVE316 SS

OPTIONSHydraulic motor .22 cu. in., Hydraulic motor .37 cu. in., Tap for recirculation or seal flush
