Chemflo 3 Pedestal
Manufacturer: MP Pumps
2" x 1-1/2" Enclosed Impeller Chemical Pump

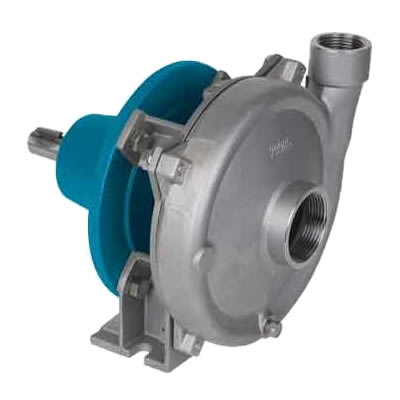

CHEMFLO® 3 PEDESTAL
MP Pumps has re-designed the CHEMFLO® 3 Pedestal chemical pump housing allowing for the acceptance of both a semi-open and enclosed impeller. The enclosed impeller improves pump efficiency over the semi-open impeller making it an ideal option when pumping fluids without large solids. Maximum solids should not exceed .25 diameter for this end suction centrifugal pump.
All wetted components are 316 investment cast stainless steel providing superior corrosion resistance when pumping chemical compounds. The Chemflo® 3 is adaptable for close coupling to both 56C 145TC and 184C NEMA frame electric motors. Pedestal (Bare Shaft) mounting is available for long-coupling. The Chemflo® 3 is also available with the MP Hy-Speed hydraulic motor.
If ordering a pumpak with a 145TC please note that the electric motor must have a base.
SUCTION AND DISCHARGE2" x 1-1/2" NPT
APPLICATIONAgricultural, Commercial, Industrial, OEM
MATERIALS OF CONSTRUCTION316 stainless steel
FLOW160 GPM
HEAD FEET98 TDH
IMPELLER5.25" enclosed, cast 316 SS
MOTORClose coupled 56C, Close coupled 145TC, Close coupled 184C, Pedestal, PumPAK® (without motor)
DRIVE OPTIONSSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
SEAL
