Chemflo 6 CC
Manufacturer: MP Pumps
3" x 2" Chemical Pump

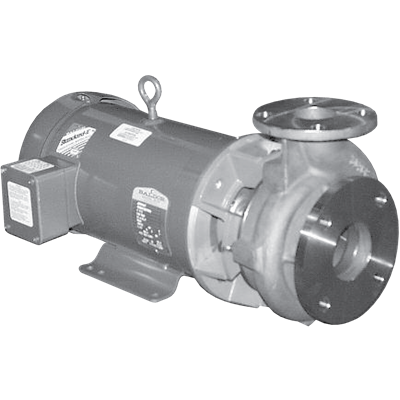

CHEMFLO® 6 CC
Motors for this chemical pump include the 145TC, 184TC, and 215TC. The CHEMFLO® 6 CC uses stainless steel parts to keep your pump running healthy and efficiently, ensuring no internal corrosion results. The end suction pump comes standard with a wide variety of mechanical seals to suit any application.
The ChemFlo® 6 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo® 6 to meet most duty points up to 450 GPM and total head up to 157 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal.
ChemFlo® 6 pumps are offered in two configurations, pump (with motor) and PumPAK® (without motor) versions. Motors available are 145TC, 184TC, and 215TC. If ordering a PumPAK please note that the electric motor must have a base.
SUCTION AND DISCHARGE3" x 2" 150# ANSI flange
APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTION316 stainless steel
FLOWUp to 450 GPM
HEAD FEETUp to 157'
IMPELLER6.18" enclosed, cast 316 SS
MOTORUp to 15 HP
DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Close coupled 145TC, Pedestal, PumPAK® (without motor)
SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
DRIVE SLEEVE316 stainless steel
OPTIONSTap for recirculation or seal flush, Hydraulic motor driven pedestals and shaft driven pedestals
