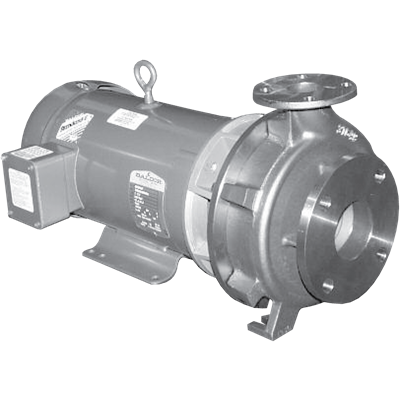

Chemflo 8 CC
Manufacturer: MP Pumps
3" x 1-1/2" Chemical Pump
CHEMFLO® 8 CC
This long-lasting chemical pump can meet most duty points by flowing up to 350 GPM and reaching a total head upwards of 290 feet. Variations for the mechanical seal are available for the CHEMFLO® 8 CC end suction centrifugal pump, ensuring it works efficiently when applied to any industry.
The ChemFlo® 8 pumps utilize an enclosed impeller designed for achieving higher heads and efficiencies than a standard semi-open impeller. Multiple impeller trims allow the ChemFlo® 8 to meet most duty points up to 350 GPM and total head up to 290 feet. Several mechanical seal options are available in addition to the standard type 2100 carbon / ceramic / Viton mechanical seal.
ChemFlo® 8 pumps are offered in two configurations, pump (with motor) and PumPAK® (without motor) versions. Motors available are 145TC, 184TC, 215TC, 256TC, and 286TSC. If ordering a PumPAK® please note that the electric motor must have a base.
SUCTION AND DISCHARGE3" x 1-1/2" 150# ANSI flange
APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTION316 stainless steel
FLOWUp to 350 GPM
HEAD FEETUp to 290'
IMPELLER8.0" enclosed, cast 316 SS
MOTORUp to 30 HP
DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Close coupled 256TC, Close coupled 145TC, Pedestal, PumPAK® (without motor)
SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
DRIVE SLEEVE316 stainless steel
OPTIONSTap for recirculation or seal flush, Hydraulic motor driven pedestals and shaft driven pedestals
