Crane-Foil®

Crane-Foil®

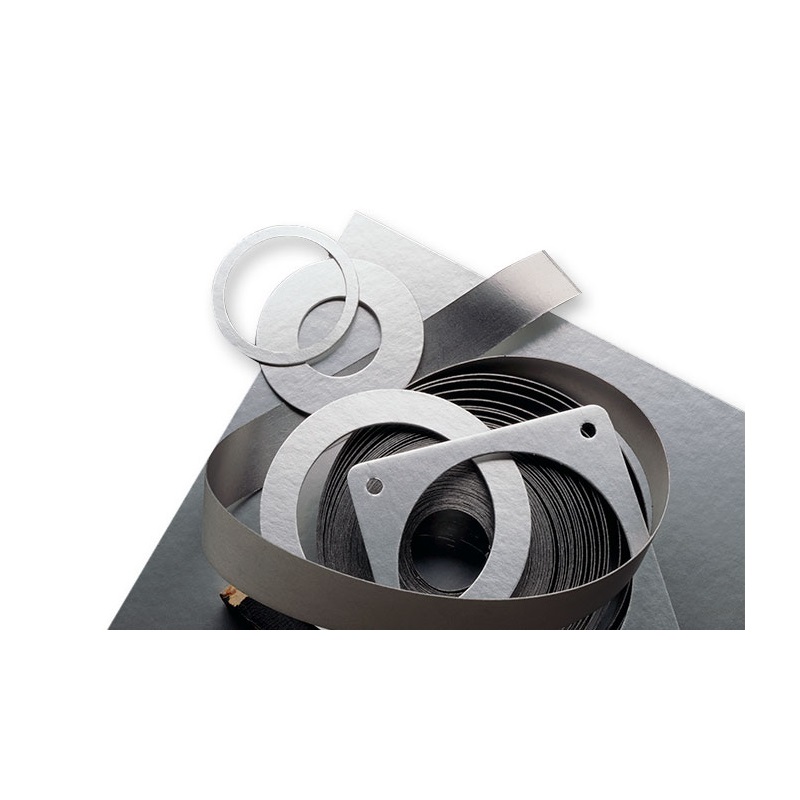

Flexible Graphite Gasket
Crane-Foil® is a premium-grade flexible graphite gasket material used in a wide range of services, where conventional gaskets will not withstand extreme temperature and/or pressures. Crane-foil gaskets feature the benefits of graphite, including resistance to most fluids, high temperatures and pressure changes. They provide excellent sealing, preventing product leakage and minimizing change-outs. Resistance to cold flow, weathering and aging make Crane-foil ideal where increased reliability is necessary.

Parameters
TEMPERATURE LIMITS
Oxidizing: -400°F to 850°F/-240°C to 455°C
Non-oxidizing: -400°F to 5432°F/-240°C to 3000°C
Steam: 1200°F/650°C
Stainless inserted: -400°F to 1800°F/-240°C to 1000°C
PRESSURE LIMITS
2,000 psi(g)/136 bar(g)
Stainless inserted: 10,000 psi(g)/680 bar(g)
PH RANGE
0 to 14 (except strong oxidizers)
Recommended Applications
• Process pumps
• Mixer and agitators
• Other rotating equipment
• Valves
