DF-45F
Manufacturer: American Warming and Ventilating

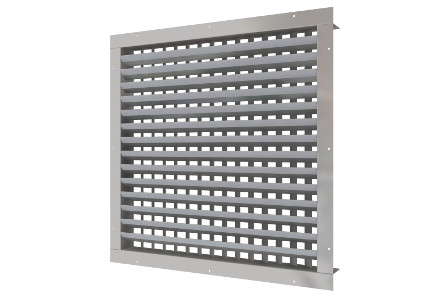

DF-45F 3-⅛” 4-Way Diffuser Damper
4-Way Diffuser, Two Sets Of Airfoils
Damper Depth3-1/8"
Description4-Way Diffuser, Two Sets Of Airfoils
Max Face Velocity3000 FPM
Max Pressure1 in. wg
Max Temperature250 F
Min Size6" x 6"
Max Size30" x 30"
Frame Material16 Ga. Galvanized Steel thru 14 Ga. Galvanized Steel
Blade Material20 Ga. Galvanized Steel, Airfoil Shape, 2" Max Width
Axles5/16" Dia. Plated Steel, Full Length
BearingsNone
LinkageNone
StopsNone
FinishMill
ActuatorNone
SealsNone
