DF-46
Manufacturer: American Warming and Ventilating

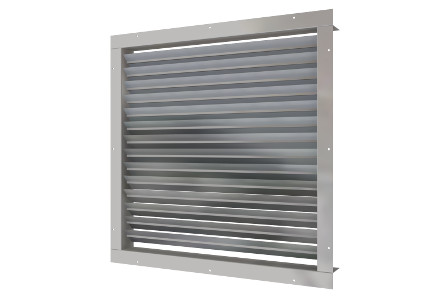

DF-46 3” 2-Way Diffuser Damper
2-Way Diffuser, Single Thickness
Damper Depth3"
Description2-Way Diffuser, Single Thickness
Max Face Velocity2000 FPM
Max Pressure1 in. wg
Max Temperature250 F
Min Size6" x 6"
Max Size30" x 96"
Frame Material16 Ga. Galvanized Steel thru 14 Ga. Galvanized Steel
Blade Material20 Ga. Galvanized Steel, 3" Max Width
Axles5/16" Dia. Plated Steel, Stub
BearingsNone
LinkageNone
StopsNone
FinishMill
ActuatorNone
SealsNone
