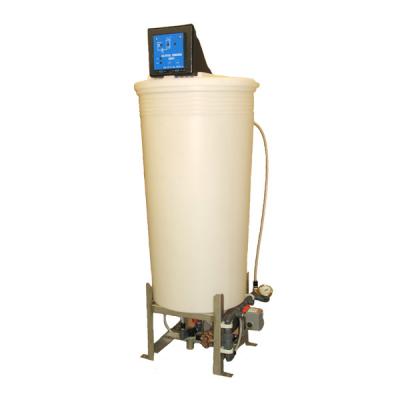

Digital Glycol Feeders

Manufacturer: Pulsafeeder

Pulsafeeder's Digital Glycol Feeder provides a consistent operating pressure in closed loop systems. This allows a controlled percentage of glycol solution to be fed from the 55 gallon tank. The Digital Glycol Feeder is available in two models; the DGF1 for single loop and the DGF2 for dual loop systems. The control unit utilizes an 8 bit microcontroller for precise feed system control. The NEMA4X enclosure can be wired conduit or prewire for easy startup. The preplumbed assembly includes a pressure gauge, pressure switch, and pressure relief valve to prevent excessive pressure build up. A low liquid level switch with optional audible alarm prevents the gear pump from operating when the solution is low.

• Provides consistent operating pressure in closed loop systems
• Fully piped and wired

Power Input115 VAC, 230 V

Product Options• Single or Dual Loop • Conduit or Prewire • With or Without Audible Alarm • Single or Dual Dry Contact • Single or Dual AC Output • Dry Contact-Single and AC Output • Pressure Switch Options • Voltage

AccessoriesBoiler Controllers Cooling Tower Controllers Metering Pumps Pre Engineered Systems
