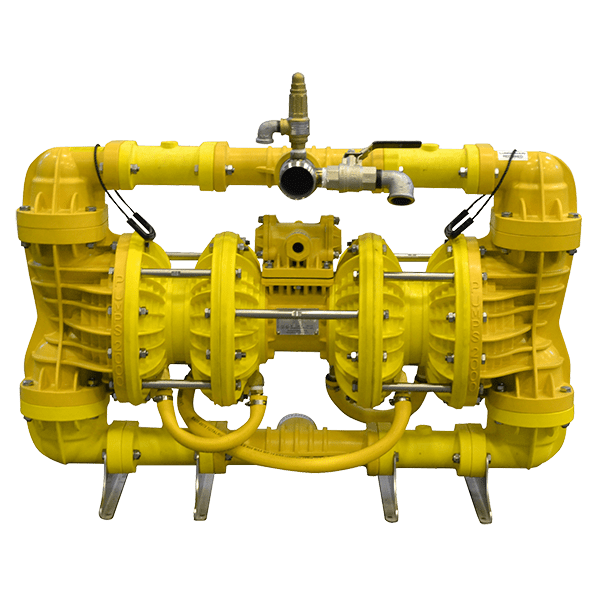

DS50BY Yellow Series Double Staged Ball Valve

Manufacturer: Pumps 2000

Pumps 2000 Yellow Series air operated double diaphragm pumps are ATEX certified pumps suitable for general water and slurry conditions salt water some low PH acid applications applications requiring food grade approved materials of construction and more.
The Yellow series has an ATEX M2 rating. The pump housing is made of a nylon blend and the internal elastomers are hytrel. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.

• Tested at 100 psi supply air pressure (Not to exceed 125 psi)
• 109lbs / 49.4kg Pump Weight
• Passes suspended solids up to .71″ / 18mm diameter
• Maximum flow rate of 0 80 gpm / 300 L/min
• No Lubrication Required
• Self Priming
