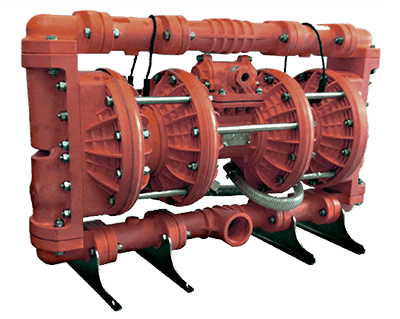

DS50SR Red Series Double Staged Slurry Valve
Manufacturer: Pumps 2000
Pumps 2000 Red Series (FRAS) air operated double diaphragm pumps are ATEX certified pumps suitable for continuous use in hazardous Explosive atmospheres. FRAS Series pumps are Fire Resistant & Anti Static.
The Red Series has an ATEX M1 rating. The pump housing is made of a nylon blend and the internal elastomers are hytrel. Other materials are available to suit your specific application. Please contact us with your application details so that we may select the right mix of materials for your specific application.
• Tested at 100 psi supply air pressure (Not to exceed 125 psi)
• 118lbs / 53.5 kg Pump Weight
• Passes suspended solids up to 1.5″ / 40mm diameter
• Maximum flow rate of 0 80 gpm / 300 L/min
• No Lubrication Required
• Self Priming
• 118lbs / 53.5 kg Pump Weight
• Passes suspended solids up to 1.5″ / 40mm diameter
• Maximum flow rate of 0 80 gpm / 300 L/min
• No Lubrication Required
• Self Priming
