FD Compact

Manufacturer: EKATO

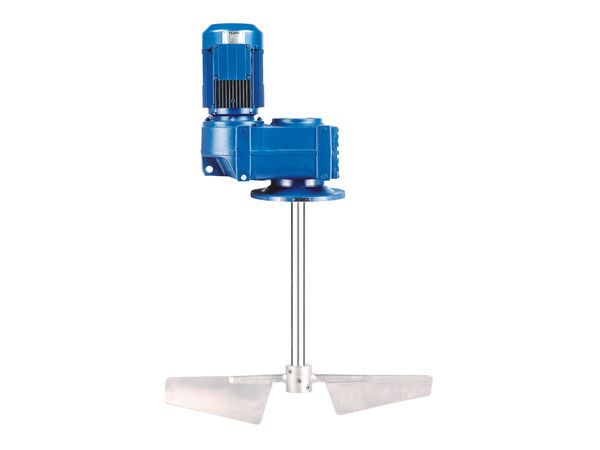

The compact EKATO agitators FD, KD and HWL A are designed for open vessels or those which have a low pressure. Their robust design and excellent smoothness when operating make them extremely reliable, even when mixing media with high solid contents. Further advantages are the low overall height and the modular design which ensure maintenance at low cost and an easy modification of the agitator, if necessary.

*Drive versions with flat or bevel gearbox
*Massive or hollow shaft
*Divisible shaft with flange coupling
*Mounting flange or plate

Strengthened bearing inside of the gearbox

Available with a compact sealing lantern, including:
*V ring
*Shaft seal ring
*Water seal
*Safety labyrinth seal or
*Stuffing box

Rubber coated shafts and impellers for highly abrasive and corrosive products with high solid contents (E.g. for flue gas desulfurization or processing of ore)
Steady bearing

Motor Power0.75 - 400 kW

Shaft Diameter40 - 800 mm

Operating PressureAtmospheric - 4 bar

Impeller SystemsEKATO high efficiency impellers and conventional impellers

Materials (product wetted)Carbon steel, rust-& acid resistant steels, nickel base alloy, Duplex-& Super Duplex steels, titanium & titanium alloys, rubber coatings, coatings

ApprovalATEX 2014/34/EU & GOST TR ZU 010/2011
