Flomax 10
Manufacturer: MP Pumps

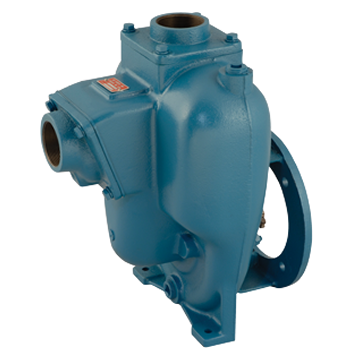

2" x 2" Self Priming Pump
FLOMAX® 10
The FLOMAX® 10 self priming centrifugal pump by MP Pumps can create a vacuum that is sufficient to lift liquids up to 25 feet. Once this pump is primed, a built in flapper valve maintains a full column of liquid in the suction line. These centrifugal pumps can easily couple to hydraulic motors, 182TC/184TC motors, and gas engines.
A FLOMAX® 10 PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 182TC and 184TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller.
The FLOMAX® series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators & Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.
SUCTION AND DISCHARGE2" x 2" NPT
APPLICATIONAgricultural, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTIONBronze, Cast iron
FLOWUp to 225 GPM
HEAD FEETUp to 145'
IMPELLER6.0" max. diameter, semi-open
MOTORUp to 7.5 HP
DRIVE OPTIONSClose coupled 184TC, Engine mount 11 HP, Engine mount 13 HP, Engine mount 5.5 HP, Engine mount 6.5 HP, Pedestal, PumPAK® (without motor)
SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
MAX SOLID SIZE.625"
OPTIONSBase plate pictured above is optional, Double seal available for dry run applications, Hydraulic motor .73 cu. in.
FEATURESRenewable wear plate, Stainless steel drive sleeve, Stainless steel fasteners, Up to a 25' suction lift
