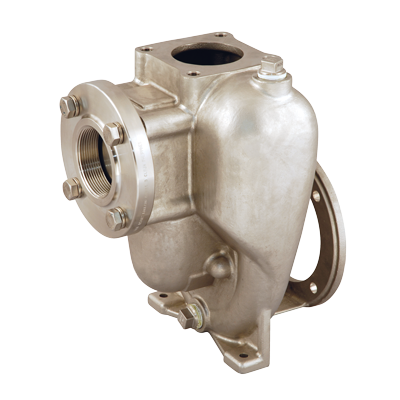

Flomax 15 316SS

Manufacturer: MP Pumps

3" X 3" Self Priming Pump
FLOMAX® 15 316 SS

This self priming pump contains a well-greased seal which allows the pump to operate in a dry run condition, increasing hours of running time while protecting the seal. Outfitted with 316 stainless steel, this pump can tolerate caustic liquids. With that being stated, the FLOMAX® 15 316 SS self priming centrifugal pump is perfect for any application.

A FLOMAX® 15, 316 SS PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 184TC and 215C frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.

Standard features include a 3″ NPT 150# class flat flange on the suction of the pump, a Viton flapper, a 3″ SAE 4-bolt flat face discharge connection, stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. Options include a 5-blade stainless steel impeller and seals for all types of abrasive and/or corrosive services.

The FLOMAX® series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators & Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

APPLICATIONAgricultural, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTION316 SS

FLOWUp to 300 GPM

HEAD FEETUp to 136'

IMPELLER6.0" max. diameter, semi-open

MOTORUp to 7.5 HP

DRIVE OPTIONSClose Coupled to 184TC, Close Coupled to 215C, Engine mount to 11HP, Engine mount to 13HP, Pedestal, PumPAK® (without motor)

SEALCarbon/Ceramic/Viton, Special seal material combinations available (consult factory)

FEATURESRenewable wear plate, Up to 25' suction lift

OPTIONS5 blade impeller for higher flows, Available 3" NPT ANSI 150# class discharge flange kit (p/n: 38647), Hydraulic motor .73 cu. in.

SUCTION3" NPT ANSI 150# class flat flange with Viton flapper

DISCHARGE3" ANSI 4-bolt flange connection, Optional 3" NPT ANSI 150# Flange Available. Part number for Optional Discharge Flange Kit: 38647
