Flomax 15
Manufacturer: MP Pumps

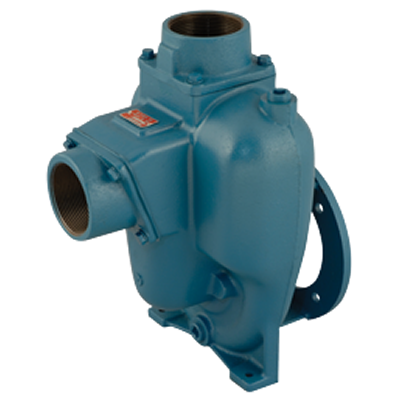

3" x 3" Self Priming Pump
FLOMAX® 15
Close coupled to hydraulic motors, 184TC/215TC frame motors, and gas engines, this self priming pump is great for a wide variety of applications. A flapper valve comes standard with every FLOMAX®15 model, making sure a full column of liquid is maintained in the suction line. A bearing pedestal for this self priming centrifugal pump is available for T-frame motors or belt drives.
A FLOMAX® 15 PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 184TC and 215C frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller.
The FLOMAX® series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators & Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.
SUCTION AND DISCHARGE3" x 3" NPT
APPLICATIONAgricultural, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTION316 stainless steel, Bronze, Cast iron
FLOWUp to 320 GPM
HEAD FEETUp to 145'
IMPELLER6.0" max. diameter, semi-open
MOTORUp to 7.5 HP
- Data Sheet flomax 15 self priming centrifugal pump
- Flomax 15 and 10 Type Approval
- Flow Curve 3450 Flomax15
- Flow Curve 3450 Flomax15
- Flow Curve 3500 Flomax15
- Flow Curve Flomax15
- Flow Curve Flomax15
- Flow Curve Flowmax 15 Double Seal
- Flow Curve Flowmax 15 Double Seal 3450
- Installation Sheet 3001 floma
- Installation Sheet 3002F flomax pumpak
