Flomax 30
Manufacturer: MP Pumps

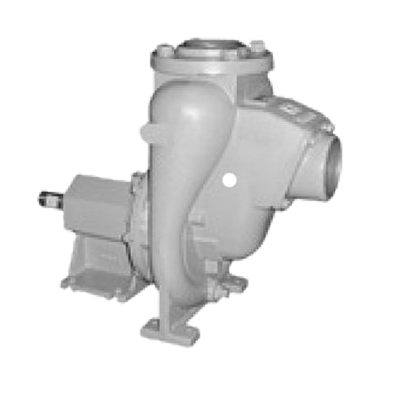

3" x 3" Self Priming Pump
FLOMAX® 30
Standard features on this self priming pump include stainless steel fasteners and renewable wear plates. The FLOMAX® 30 self priming centrifugal pump can generate enough power to lift liquids up to 25 feet. To keep a full column of liquid in the suction line and to ensure this machine keeps running efficiently, a flapper valve has been installed.
A FLOMAX® 30 PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as 182TC to 256TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller.
The FLOMAX® series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators & Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.
SUCTION AND DISCHARGE3" x 3" NPT
APPLICATIONAgricultural, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTIONBronze, Cast iron
FLOWUp to 500 GPM
HEAD FEETUp to 190'
IMPELLER6.75" max diameter, 6-vane semi open
MOTORUp to 25 HP
DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Close coupled 256TC, Engine mount 25 HP, Pedestal, PumPAK® (without motor)
SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
MAX SOLID SIZE.60"
FEATURESStainless steel drive sleeve, Stainless steel fasteners, Up to a 25' suction lift
