Flomax 35 SS
Manufacturer: MP Pumps
4" x 3" Self Priming Pump
FLOMAX® 35 SS

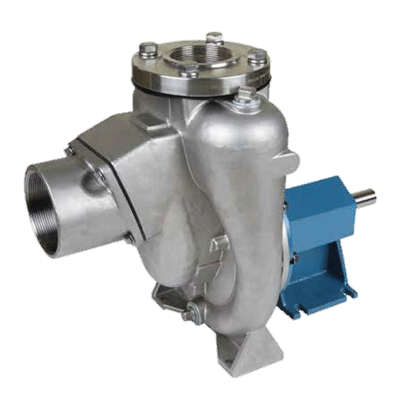

Equipped with a Viton flapper and a priming chamber fill plug, this self priming centrifugal pump was built for a variety of different applications. Constructed from high grade 3316 stainless steel, this pump keeps pumping at efficient levels even when dealing with caustic liquids.
The pump is equipped with a standard viton flapper, priming chamber fill-plug, and a 4” NPT Suction Flange which offers improved suction lift capabilities at the higher flow range. The discharge port is 3” ANSI 150 # Class Flat Flange. The standard mechanical seal is carbon/ceramic/viton/stainless steel. Consult factory for optional seals. Two basic PumPak styles allow the FLOMAX® 35 self-priming centrifugal pump to fit standard Nema “C” electric motor frames, engines or the standard MP pedestal. The PUMPAK is completely assembled and can be mounted to a standard motor in minutes. Applications include: AG Fertilizer transfer, Chemical transfer, Diesel Exhaust Fluid (DEF) transfer and R.O. water transfer.
APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM, Transportation
MATERIALS OF CONSTRUCTION316 stainless steel
FLOWAC – up to 15 GPM, DC – up to 12 GPM
HEAD FEETAC – up to 14', DC – up to 16'
IMPELLER316 stainless steel semi-open
DRIVE OPTIONSClose coupled 115V AC, Close coupled 12V DC, Close coupled 230V AC, Close coupled 24V DC
SEALCarbon / ceramic / Viton bellows 150 PSI, Special seals upon request, Standard carbon / ceramic / Viton
