Flomax 40

Manufacturer: MP Pumps

4" x 4" Self Priming Pump

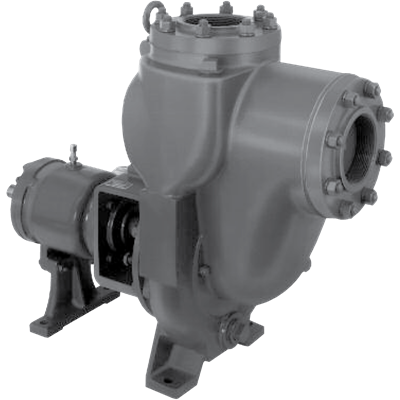

FLOMAX® 40

The FLOMAX® 40 self priming centrifugal pump can be close coupled to a number of drivers such as the 215JP frame motor as well as gas engines. Liquid heights upward of 25 feet can be reached with the technology utilized in this industrial pump. In order to run at maximum efficiency levels, a built in flapper valve maintains a full column of liquid in the suction line.

A FLOMAX® 40 PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as 215JP frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wear plate, and a semi-open dynamically balanced impeller. Options include double grease-lubricated seals, stainless steel impeller and seals for all types of abrasive and/or corrosive services.

The FLOMAX® series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators & Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.

SUCTION AND DISCHARGE4" x 4" NPT

APPLICATIONAgricultural, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTIONCast iron

FLOWUp to 750 GPM

HEAD FEETUp to 225'

IMPELLER7.75" max diameter – semi open

MOTORUp to 50 HP

DRIVE OPTIONSPedestal, PumPAK® (without motor)

SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton

MAX SOLID SIZE.65"

FEATURESRenewable wear plate, Stainless steel drive sleeve, Stainless steel fasteners, Up to a 25' suction lift
