Flomax 8
Manufacturer: MP Pumps

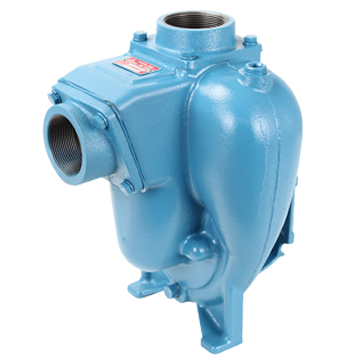

2" x 2" Self Priming Pump
FLOMAX® 8
Once primed, the FLOMAX® 8 self priming centrifugal pump is able to keep a full column of liquid in the suction line with a flapper valve. Up to 25 feet of lift can be created from the technology found inside this self priming pump. The centrifugal pump contains stainless steel fasteners and drive shaft; making it perfect for every application inside the industrial, OEM, agricultural and marine industries.
A FLOMAX® 8 PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 56C and 145TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.
Standard features include stainless steel drive sleeve, stainless steel fasteners, renewable wearplate, and a semi-open dynamically balanced impeller.
The FLOMAX® series of pumps are commonly used in Industrial, OEM, Agricultural and Marine applications, such as: Bilge Pumps, Auxiliary Fire Pumps, Ballast Transfer Pumps, Washdown Pumps, Fertilizer and Pesticide Pumps, Applicators & Sprayers, Blending Pumps, Nurse Tanks, Bulk Transfer Pumps and much more.
SUCTION AND DISCHARGE2" x 2" NPT
APPLICATIONAgricultural, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTION316 stainless steel, Aluminum, Bronze, Cast iron
FLOWUp to 150 GPM
HEAD FEETUP to 100'
IMPELLER5.0" max. diameter, semi-open
MOTORUp to 3 HP
DRIVE OPTIONSClose coupled 56C, Engine mount 5.5 HP, Engine mount 6.5 HP, Close coupled 145TC, Pedestal, PumPAK® (without motor)
SEALSpecial seal material combinations available (consult factory), Standard carbon / ceramic / Viton
MAX SOLID SIZE.56"
OPTIONS5 blade impeller available for higher flows, Base plate shown above is optional, Double seal available for dry run applications, Flanges not included on S.S. models, Hydraulic motor .37 cu. in., Hydraulic motor .45 cu. in., Hydraulic motor .58 cu. in.
FEATURESRenewable wear plate, Stainless steel drive sleeve, Stainless steel fasteners, Up to a 25' suction lift
- Data Sheet flomax 8 self priming centrifugal pump
- Flomax 5 and 8 Type Approval
- Flow Curve 3136 Flomax8
- Flow Curve 3137 Flomax8
- Flow Curve 3450 Flomax8
- Flow Curve CN 180215 Flomax8
- Flow Curve CN 180216 Flomax8
- Flow Curve CN 180217 Flomax8
- Flow Curve Flomax8
- Installation Sheet 3001
- Installation Sheet 3002F flomax pumpak
