FMX 100

Manufacturer: MP Pumps

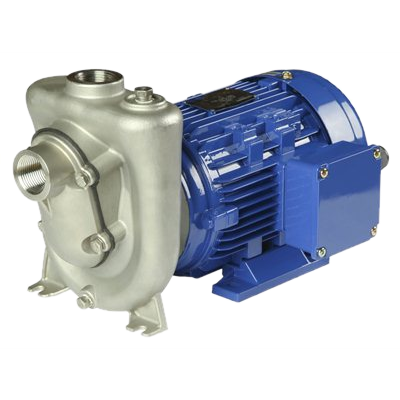

1" x 1" Self Priming Pump
FMX 100

The patented 1” x 1” FMX100 self priming centrifugal pump is constructed from 316 SS for superior corrosion resistance and compatibility with most fluid types. A type 6A carbon/ceramic/Viton mechanical seal is standard. With a maximum flow of over 55 GPM and pressure capabilities of nearly 60 feet, this rugged industrial pump is capable of 17 feet suction lift when operating at 3450 RPM.

The FMX 100 has numerous applications in industries such as: construction, petroleum, diesel exhaust fluid, marine and marine air conditioning, agriculture for biocides and liquid fertilizers, and numerous industrial applications such as brine and calcium chloride.

APPLICATIONAgricultural, Commercial, Industrial, Marine

MATERIALS OF CONSTRUCTION316 stainless steel

FLOWUp to 55 GPM

HEAD FEET60'

IMPELLER4.0"

DRIVE OPTIONSClose Coupled 1 HP TEFC IEC80B34 Motor, Close coupled 3/4HP TEFC IEC80B34 Motor, Engine Mount for 5/8" Shaft, Pedestal Hydraulic

SEALType 6A carbon/ceramic/viton

DISCHARGE1"

SUCTION1"
