FMX 75
Manufacturer: MP Pumps
3/4" x 3/4" Self Priming Pump
FMX 75

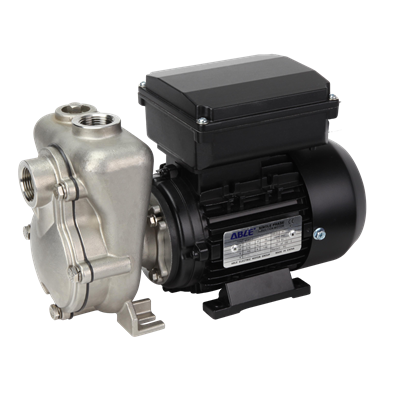

The model FMX 75 is a high performance self-priming centrifugal pump. Outfitted with 316 stainless steel, this pump has unmatched levels of durability when dealing with toxic fluids. The centrifugal pump is ideal for marine, industrial, agricultural or commercial applications where suction lift is required. A carbon/ceramic/Viton bellows shaft seal comes standard.
The FMX 75 model features all 316 stainless steel components for superior corrosion resistance when pumping chemical compounds. A carbon / ceramic / Viton bellows shaft seal is standard. Ports are 3/4” NPT with a 1/8” NPT fill port. The FMX 75 model is capable of 12 foot suction lift (3450 rpm). Marine ignition protected motors (ISO 8846) available.
SUCTION AND DISCHARGE3/4" NPT x 3/4" NPT
APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM
MATERIALS OF CONSTRUCTION316 stainless steel
FLOWUp to 21 GPM
HEAD FEETUp to 23'
IMPELLER316 stainless steel semi-open
MOTORISO 8846 motor available
DRIVE OPTIONSClose coupled 115V AC, Close coupled 12V DC, Close coupled 230V AC, Close coupled 24V DC
SEALSpecial seals upon request, Standard carbon / ceramic / Viton
PATENT #US PATENT # 8,202,046 B2
