FO-413
Manufacturer: American Warming and Ventilating

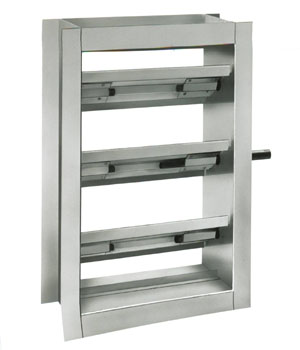

FO-413 10” Fan Outlet Damper
Heavy Duty Fan Outlet, Single Thickness, Parallel or Opposed
Damper Depth10"
DescriptionHeavy Duty Fan Outlet, Single Thickness, Parallel or Opposed
Max Face Velocity6000 FPM
Max Pressure40 in. wg
Max Temperature800 F
Min Size6" x 6"
Max Size60" x 96"
Frame Material10 Ga. Mild Steel
Blade Material12 Ga. Mild Steel thru 10 Ga. Mild Steel, 10" Max Width
Axles1" Dia. Steel, Stub
BearingsOil Impregnated Bronze w/ Stainless Steel Thrustwashers
LinkageHeavy Duty Plated Steel Arms, Stainless Steel Pivots and Galvanized Steel Angle, External Type
StopsMild Steel
Finish(1) Coat of Primer
Actuator4" Extended Shaft Is Standard (upon request, see actuator options)
SealsNone Is Standard (upon request, see seal options)
