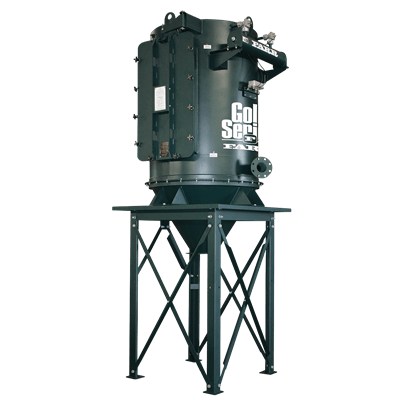

Gold Series High Vacuum

Manufacturer: Camfil

Camfil APC offers a complete range of High Vacuum (HV) dust collectors
to provide the highest levels of extraction performance across a wide
range of applications.

In their simplest form, they provide a centralized cleaning
operation to help maintain a hygienic and safe working environment. More complex
installations with process machines require the targeted source capture of dust to
reduce machine maintenance, downtime and assist with product purity and cross
contamination prevention. Often a single Camfil HV unit will replace numerous
portable vacuum units. These portable units often do not have the required dust
explosion protection or hazardous dust containment features. Replacing them can
provide more space on the production floor and eliminate issues of noise, employee
safety and dust release.

Camfil APC offers a complete range of High Vacuum (HV) dust collectors to provide the highest levels of extraction performance across a wide range of applications. In their simplest form, they provide a centralized cleaning operation to help maintain a hygienic and safe working environment.

• Heavy duty 10 and 7 gauge construction.
• Flanged, tangential inlet minimizes dust contacting the filters.
• Can be configured as a stand alone dust collector or without hopper and support structure for bin vent applications.

Application• Central vacuum dust collection (centralized cleaning operations) • Multiple production machine dust extraction connections • Material transfer (negative and positive pressure) • Portable vacuum unit replacement

CommentOptions: Horizontal explosion vent. Bag in bag out filter access door for pharmaceutical/hazardous dusts. Continuous liner discharge for pharmaceutical hazardous dusts. Discharge collection devices such as a 55 gallon drum or self dumping hopper. A range of cartridge HV dust collector units are available, depending upon the demands of the application. These proven dust collectors provide an effective, reliable and safe solution for applications across various industries including: • Pharmaceutical • Chemical • Food and Beverage
