GSP
Manufacturer: Global Pumps

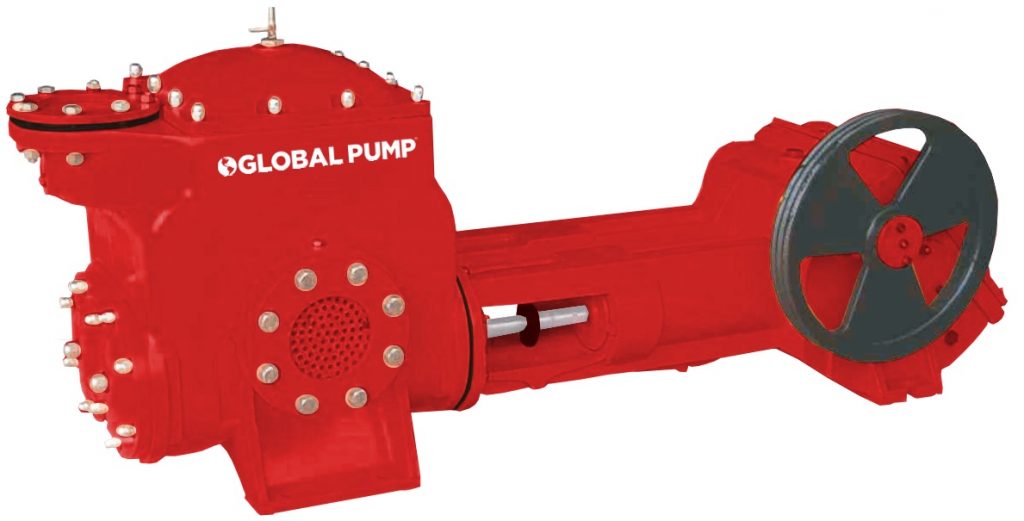

Global Standard Piston (GSP) Wellpoint
Global Pump's highly efficient, positive displacement, double piston dewatering wellpoint pump is designed for the demanding requirements of wellpoint dewatering, under drain sock dewatering, filtered water transfers, utilities, civil engineering, remediation, and various construction applications.
Capable of operating for long uninterupted periods of time with high fuel efficiency and low maintenance, the 6GSPWP offers a high air handling capacity and is self-priming. The pulsating vacuum prevents wellpoint clogging and achieves priming from greater depths.
The 6GSPWP is available with a 7.5 hp electric motor or 9.4 hp diesel engine. Standard skid mounted with optional sound attenuated enclosure.
Specs:
• Connections: 6" (150 mm) ANSI Flanges
• Maximum Pump Speed: 360 rpm
• Maximum Flow: 360 gpm (81.7 m3/h)
• Maximum Head: 81 ft (27 m)
• Displacement: 1.35 gal/stroke (5.11 liters/stroke)
• Vacuum Level: 30 ft (9 m)
• Efficiency: Up to 90%
• Fuel Consumption : (at max speed and max flow) 0.48 gal/h (1.8 l/h)
• Sound Attenuated: 72 dBa at 33 ft (10 m)
• Piston Type: Double Acting1 ft. (27 m)
The 6GSPWP is available with a 7.5 hp electric motor or 9.4 hp diesel engine. Standard skid mounted with optional sound attenuated enclosure.
Specs:
• Connections: 6" (150 mm) ANSI Flanges
• Maximum Pump Speed: 360 rpm
• Maximum Flow: 360 gpm (81.7 m3/h)
• Maximum Head: 81 ft (27 m)
• Displacement: 1.35 gal/stroke (5.11 liters/stroke)
• Vacuum Level: 30 ft (9 m)
• Efficiency: Up to 90%
• Fuel Consumption : (at max speed and max flow) 0.48 gal/h (1.8 l/h)
• Sound Attenuated: 72 dBa at 33 ft (10 m)
• Piston Type: Double Acting1 ft. (27 m)
