GVRN
Manufacturer: Rheinhuette Pumps

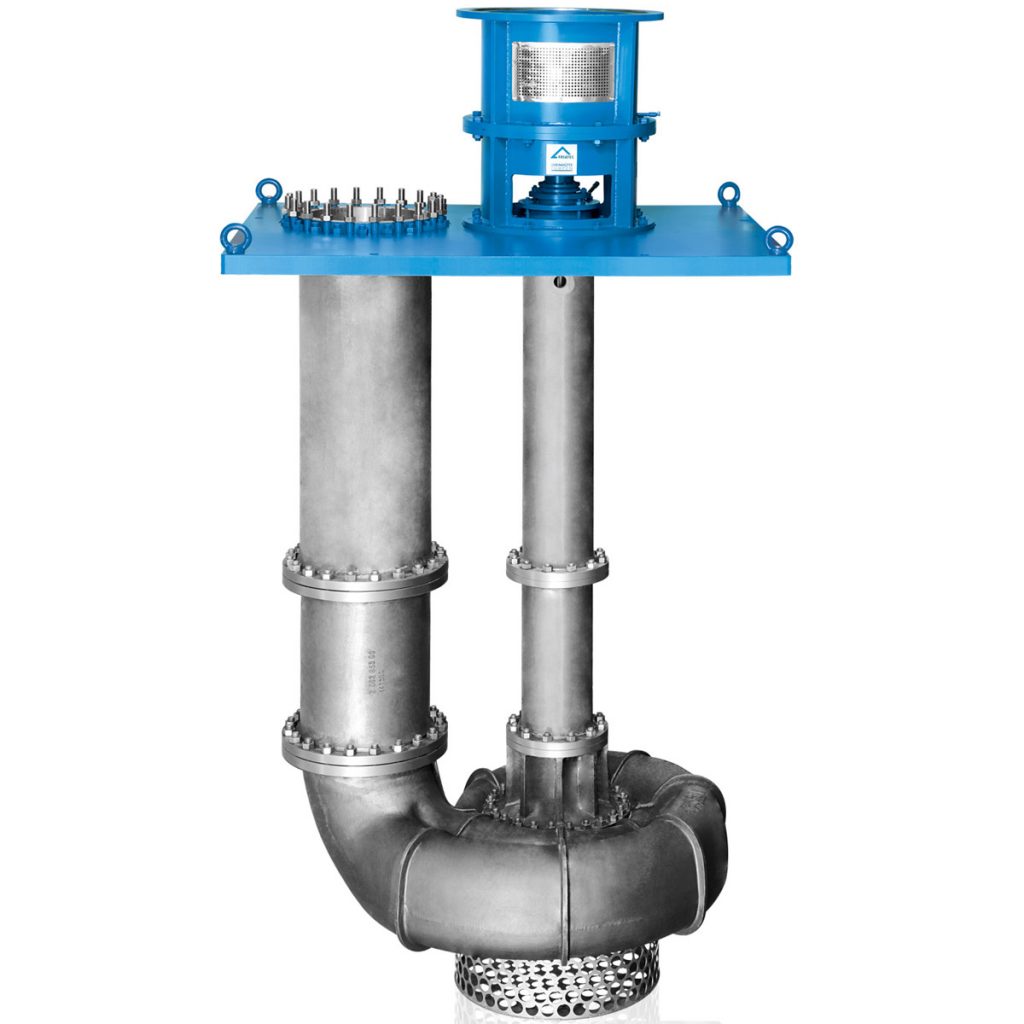

CHEMICAL CENTRIFUGAL PUMP FOR H2SO4 APPLICATIONS
• Design: vertical, single-stage
• Casing design: double volute casing
• Pump installation: wet or dry* installation
• Impeller: closed
• Bearing lubrication: grease lubrication
• Sleeve bearing lubrication: by the pumped medium or external lubrication*
• Installation versions: sole plate for tank or steel structure
• Ambient temperature: -20°C to +60°C
*only on request
• Casing design: double volute casing
• Pump installation: wet or dry* installation
• Impeller: closed
• Bearing lubrication: grease lubrication
• Sleeve bearing lubrication: by the pumped medium or external lubrication*
• Installation versions: sole plate for tank or steel structure
• Ambient temperature: -20°C to +60°C
*only on request
MaterialMetal
DesignVertical Centrifugal Pump
SizeDN 100 - DN 450
CapacityQmax. = 2.800 m3/h
HeadHmax. = 55 m
Lengthup to 3.5 m
Temperature-40 °C to +250 °C
Nominal Pressure10 bar
