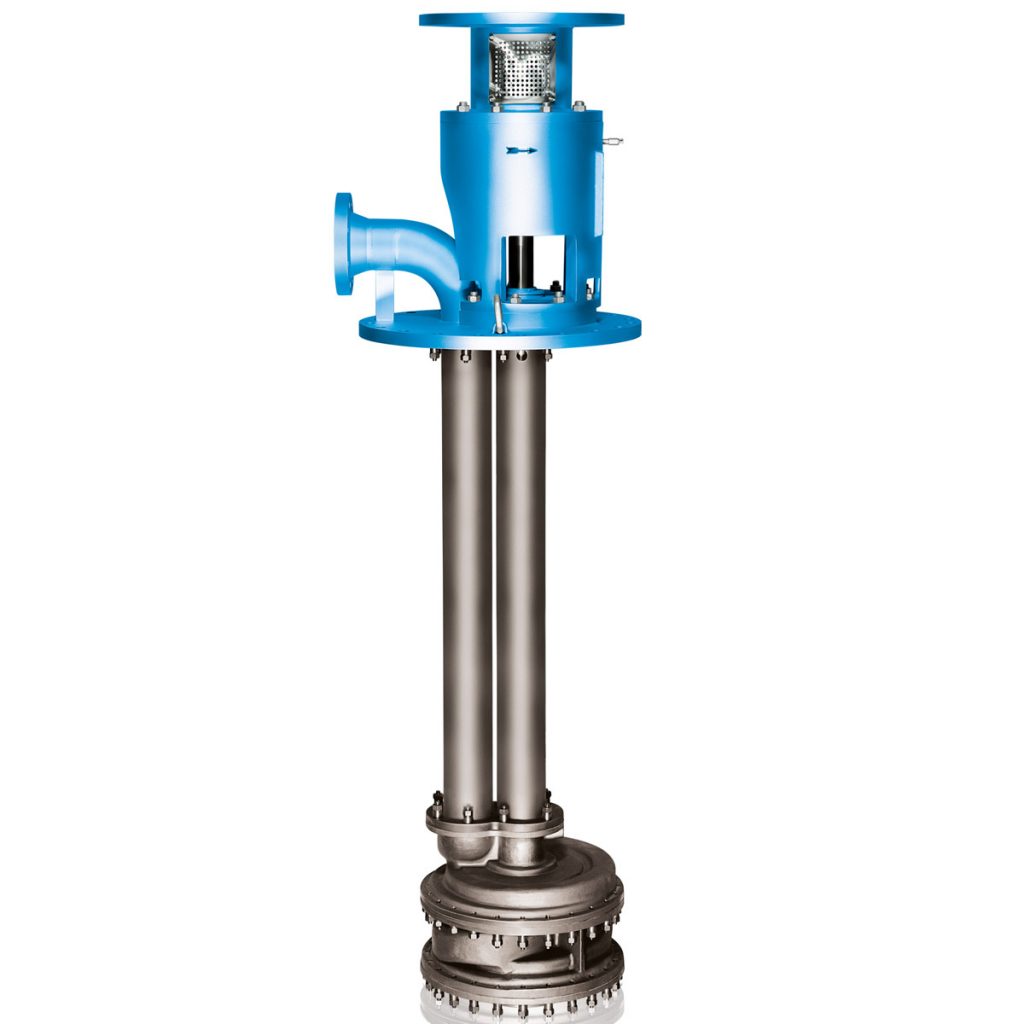

GVSO
Manufacturer: Rheinhuette Pumps
CHEMICAL CENTRIFUGAL PUMP IN METAL
• Standard: according to API 610 11th edition / ISO 13709:2009
• Design: vertical, single- or multi-stage
• Casing design: double volute casing
• Pump installation: wet or dry* installation
• Impeller: closed or open*
• Bearing lubrication: grease lubrication
• Sleeve bearing lubrication: by the pumped medium or external lubrication*
• Installation versions: sole plate for tank or steel structure
• Ambient temperature: -20°C to +60°C
*only on request
• Design: vertical, single- or multi-stage
• Casing design: double volute casing
• Pump installation: wet or dry* installation
• Impeller: closed or open*
• Bearing lubrication: grease lubrication
• Sleeve bearing lubrication: by the pumped medium or external lubrication*
• Installation versions: sole plate for tank or steel structure
• Ambient temperature: -20°C to +60°C
*only on request
MaterialMetal
DesignPumps for applications according to API 610 (ISO 13709)
SizeDN 40 - DN 450
CapacityQmax. = 2.800 m3/h
HeadHmax. = 120 m
Lengthup to 17 m
Temperature-40 °C to +600 °C
Nominal Pressure10 bar
