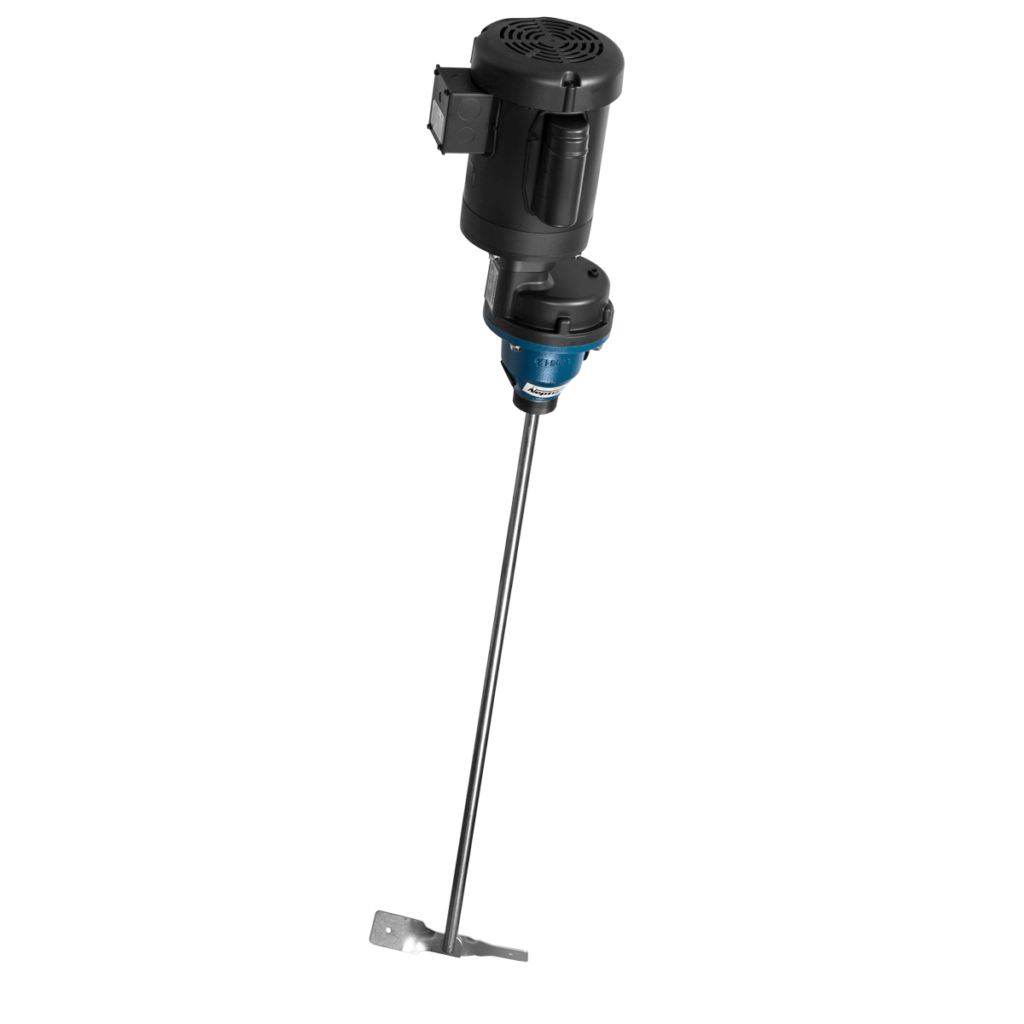

HGL Series
Manufacturer: Neptune Mixer
Neptune offers a variety of bulk container gear drive mixers with bung or bracket mount capabilities depending on the application requirements. Neptune’s JGT Series and RGT Series mixers mount to the tank or optional bracket. Neptune’s HGL Series mounts to a 2" (50.8 mm) coupling or flange. All bulk container mixer propellers fold to fit through 2" (50.8 mm) opening and opens to 9" (229 mm) operating diameter.
• 316SS propeller folds to fit through 2" (50.8 mm) opening; opens to 9" (228.6 mm) operating diameter
• Second folding propeller bolts anywhere on 3/4" (19 mm) shaft (HGL and RGT Series only)
• Second folding propeller bolts anywhere on 3/4" (19 mm) shaft (HGL and RGT Series only)
PROPELLER AND SHAFT MATERIAL316SS as standard
HOUSING MATERIALCast aluminum
MOTORSTotally-Enclosed Fan-Cooled, Air Motor
SHAFT LENGTH35-1/2" (902 mm) to 45" (1,143 mm)
SHAFT DIAMETER3/4" (19 mm) to 1" (25 mm)
PROPELLER SIZE9" (229 mm) operating diameter
