HHLF High Output

Manufacturer: MP Pumps

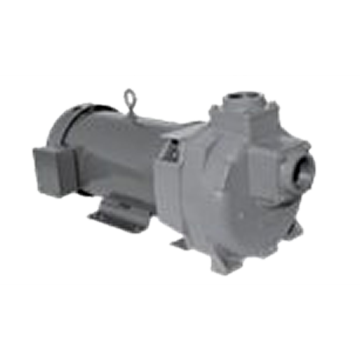

2"x2" High Pressure Water Pump
HHLF “HIGH OUTPUT”

The HHLF “HIGH OUTPUT” high pressure water pump comes standard with an O-ring located in the discharge port, resulting in increased sealing as pressures rise. This self priming centrifugal pump contains an impeller and volute that were engineered to eliminate premature priming loss and be easily replaceable. Meeting USCG criteria and being ABS type approved, this high pressure water pump is suited for multiple applications.

The HHLF series is available close coupled to NEMA “C” Face electric motors or as PumPAKs®. The engine drive models are capable of coupling to both gasoline and diesel engines with 1″ keyed drive shafts. Pedestal mounted pumps are also available.

The volute and impeller are removable and easily replaced.

The HHLF “HO” pumps are ABS type approved and meet USCG specifications for auxillary fire control (46 CFR compliant).

SUCTION AND DISCHARGE2" x 2" NPT

APPLICATIONAgricultural, Industrial, Marine

FLOWFlows to 150 GPM

HEAD FEETUp to 250 TDH

IMPELLERSilicon Bronze CA 875

DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Engine Drive, Hydraulic Drive

SEALCarbon/Ceramic/Viton-Type 21, Other Seals Available

ADAPTORCast Iron Class 30 or Silicon Bronze CA 875

DRIVE SLEEVE304 Stainless Steel

MOUNTING OPTIONSClose Coupled to NEMA "C" Face Motor Frame, Pedestal, PumPak®

46 CFR COMPLIANTYes

FEATURES46 CFR Compliant, ABS Type Approved

ABS TYPE APPROVEDYes

HOUSINGCast Iron Class 30 or Silicon Bronze CA 875
