HHLF

Manufacturer: MP Pumps

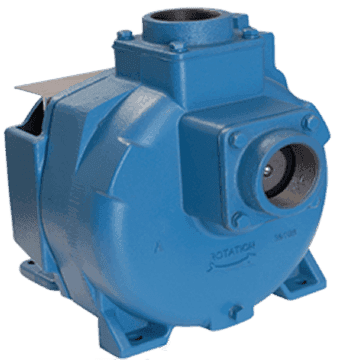

1-1/2" or 2" x 1-1/2" or 2" High Pressure Water Pump
HHLF

Engineered with a high suction centerline and impeller, this high pressure water pump eliminates premature priming loss while ensuring consistent priming capability. The HHLF self priming centrifugal pump meets USCG standards for auxiliary fire control and is ABS type approved. Featuring a volute and impeller can be easily replaced, this high pressure pump is built for agricultural, commercial, industrial, marine, and OEM applications.

The high suction centerline and impeller design eliminates premature priming loss while ensuring consistent priming capability. The HHLF pump is capable of achieving up to 25 feet suction lift.

The HHLF series is available close coupled to NEMA “C” Face electric motors or as PumPAKs®. The engine drive models are capable of close coupling to both gasoline and diesel engines with 1″ keyed drive shafts. Pedestal mounted pumps are also available.

The volute and impeller are removable and easily replaced.

SUCTION AND DISCHARGE1-1/2" x 1-1/2" NPT, 2" x 2" NPT

APPLICATIONAgricultural, Commercial, Industrial, Marine, OEM

MATERIALS OF CONSTRUCTIONBronze, Cast iron

FLOWUp to 140 GPM

HEAD FEETUp to 190'

IMPELLER6.7" cast iron Class 30 or silicon bronze CA 875

DRIVE OPTIONSClose coupled 184TC, Engine mount 5.5 HP, Engine mount 7.5 HP, Hydraulic motor .73 cu. in., Pedestal, PumPAK® (without motor)

SEALOptional seals available, Standard carbon / ceramic / Viton

ABS TYPE APPROVEDYes

DRIVE SLEEVE304 Stainless Steel

46 CFR COMPLIANTYes

ADAPTORCast Iron Class 30 or Silicon Bronze CA 875

FEATURES46 CFR Compliant, ABS Type Approved
