HTO 180
Manufacturer: MP Pumps

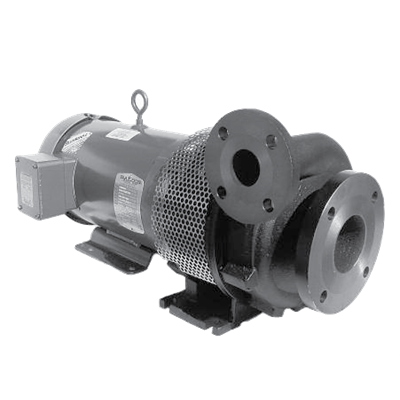

3" x 1-1/2" Hot Oil Pump
HTO™ 180
This patented centrifugal hot oil pump was engineered to operate in high temperature applications, such as plastics, chemical, food, and processing. Available with or without a motor, the HTO 180 end suction pump was designed to be mounted vertically or horizontally. Cool ambient air temperature greatly increases the seals life, making this one of the most versatile hot oil pumps on the market.
Want to learn more about using pumps with heat transfer fluids? Click here to view “Using Pumps with Heat Transfer Fluids” an article featured in Process Heating Magazine written by MP Pumps’ Chief Engineer.
SUCTION AND DISCHARGE3" x 1-1/2" ANSI 150# flat flange
APPLICATIONIndustrial, OEM
MATERIALS OF CONSTRUCTIONDuctile iron
FLOWUp to 320 GPM
HEAD FEETUp to 160'
IMPELLER6.45"
MOTORUp to 10 HP
DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Pedestal, PumPAK® (without motor)
SEALCarbon / silicon carbide / Viton, Optional severe duty seal available
DRIVE SLEEVE303 stainless steel
TEMPERATURE650°F max
