HTO 80
Manufacturer: MP Pumps

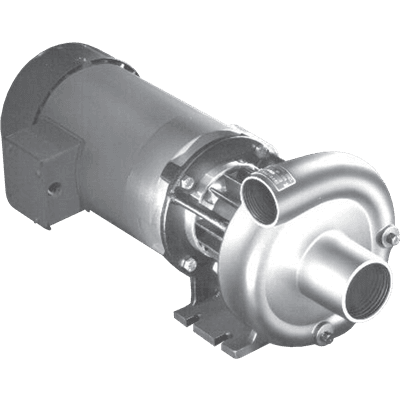

1-1/2" x 1-1/4" Hot Oil Pump
HTO™ 80
The HTO 80 is an end suction centrifugal pump that is close coupled to standard NEMA “C” face motors. All models of these hot oil pumps are available in cast iron, bronze, or aluminum construction to suit a wide variety of liquids. Outfitted with an insulated air cooled seal chamber, this centrifugal pump was engineered to run efficiently at exceptionally high temperatures.
Want to learn more about using pumps with heat transfer fluids? Click here to view “Using Pumps with Heat Transfer Fluids” an article featured in Process Heating Magazine written by MP Pumps’ Chief Engineer.
SUCTION AND DISCHARGE1-1/2" x 1-1/4" NPT or flat flange option
APPLICATIONIndustrial, OEM
MATERIALS OF CONSTRUCTIONDuctile iron
FLOWUp to 85 GPM
HEAD FEETUp to 130'
IMPELLER5.9" steel, enclosed
MOTORUp to 3 HP
DRIVE OPTIONSClose coupled 56C, Close coupled 145TC, Pedestal, PumPAK® (without motor)
SEALCarbon / silicon carbide / Viton
DRIVE SLEEVEHardened 303 stainless steel
TEMPERATURE650°F max
FEATURESIsolated air cooled seal chamber
