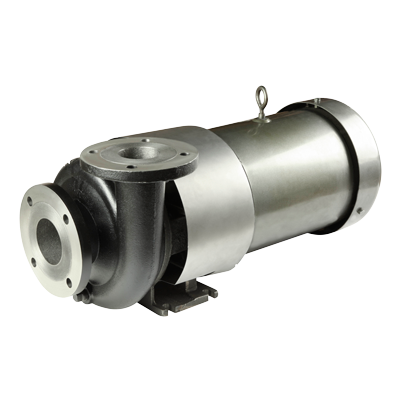

HTW 180

Manufacturer: MP Pumps

3" x 1-1/2" Hot Water Pump
HTW 180

The HTW 180 hot water pump was engineered for maximum efficiency in the OEM and industrial applications. The isolated seal chamber is kept at a cool operating temperature with the help of a fan clamp and cooling loop. With that being stated, this centrifugal end suction pump can withstand high temperatures of substances like triethylene, ethylene, and propylene glycols.

The isolator technology combined with the heat exchanger allows the seal cavity to reach a maximum and seal chamber temperature of 170°F (77°C) while the process temperature is at 400°F (204°C). This lower seal temperature greatly increases seal life, which means less down time for the end user.

Discharge port location can be provided as either Horizontal or Vertical position.

SUCTION AND DISCHARGE3" x 1-1/2" ANSI 150# flat flange



FLOWUp to 320 GPM

HEAD FEETUp to 162'


MOTORUp to 10 HP

DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Pedestal, PumPAK® (without motor)

SEALCarbon / silicon carbide / Viton
