HTW 300

Manufacturer: MP Pumps

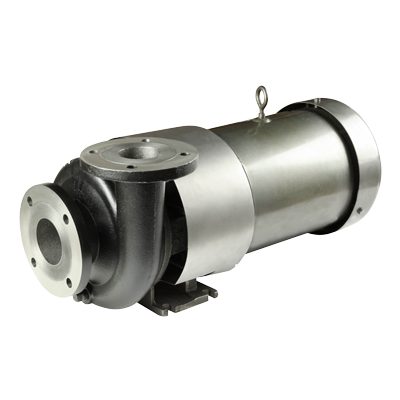

3" x 2-1/2" Hot Water Pump
HTW 300

This end suction hot water pump can run smoothly when dealing with substances like propylene, triethylene, and ethylene glycols at temperatures as high as 400 F (204°C). By utilizing a cooling loop and a fan clamp, our isolated seal chamber is guaranteed to run at a cool, efficient temperature. The HTW 300 centrifugal pump was developed for the industrial and OEM industries.

he isolator technology combined with the heat exchanger allows the seal cavity to reach a maximum and seal chamber temperature of 170°F (77°C) while the process temperature is at 400°F (204°C). This lower seal temperature greatly increases seal life, which means less down time for the end user.

Discharge port location can be provided as either Horizontal or Vertical position.

SUCTION AND DISCHARGE3" x 2-1/2" ANSI 150# flat flange

APPLICATIONIndustrial, OEM

MATERIALS OF CONSTRUCTIONDuctile iron

FLOWUp to 500 GPM

HEAD FEETUp to 190'

IMPELLER7.0" cast iron, enclosed

MOTORUp to 20 HP

DRIVE OPTIONSClose coupled 184TC, Close coupled 215TC, Pedestal, PumPAK® (without motor)

SEALCarbon / silicon carbide / Viton
